Zeta Xtratone MKII Addressable Indoor Wall Sounder (Red) (MKII-AXT/R)
SKU: MKII-AXT/RBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Zeta Xtratone MKII Addressable Indoor Wall Sounder (Red) (MKII-AXT/R)
£47.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Complies with EN54 part 3
- 16 tones selectable from the control panel (approved tones: Tone 0 and Tone 8)
- Hard addressed via 8 way DIP switch or soft addressed via MKII handheld programmer
- 4 x 20mm cable entries (2 top, 2 bottom)
- Wire-to-back-box first fix
Frequently bought together
Zeta
Zeta Xtratone MKII Addressable Indoor Wall Sounder (White) (MKII-AXT/W)
Sale price£47.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
Sale price£59.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (White) (MKII-AXTB/W)
Sale price£59.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta ZP4 Addressable Manual Call Point (MKI Protocol) (ZT-CP4/AD/STD)
Sale price£38.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta ZP4 Addressable Manual Call Point (ZT-CP4/AD)
Sale price£30.15
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

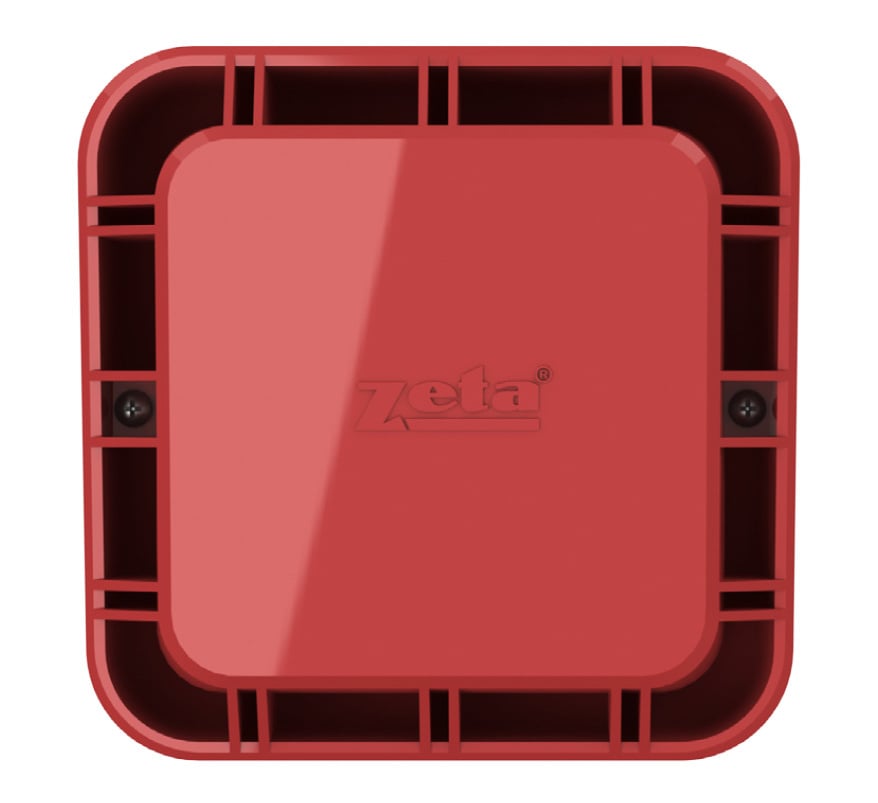

The Zeta Xtratone MKII-AXT/R is a small, high output red addressable wall sounder for indoor use on Zeta Fyreye MKII protocol addressable fire alarm systems. It is designed to meet EN54 part 3, with 16 tones selectable from the control panel, and can be hard addressed with its DIP switch or soft addressed with the MKII handheld programmer.
Key features
- Complies with EN54 part 3
- 16 tones selectable from the control panel (approved tones: Tone 0 and Tone 8)
- Hard addressed via 8 way DIP switch or soft addressed via MKII handheld programmer
- 4 x 20mm cable entries (2 top, 2 bottom)
- Wire-to-back-box first fix
Technical specifications
- Part number: 42-610
- Colour: Red
- Operating voltage: 17-28V DC
- Quiescent current: 1.5mA
- Alarm current: 5.4mA
- Sound output: 99.3dB ±2dB (Tone 0, reverberant conditions)
- Operating temperature: -10°C to +55°C
- Maximum humidity: 95% RH non-condensing
- IP rating: IP21C
- Size: 105 x 105 x 49mm (105 x 105 x 82mm with back box)
- Weight: 200g
