Shop all Zeta
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
SKU: MKII-AXTB/RBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
£59.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Beacon coverage: W-3.1-9.1
- Flash rates between 0.33Hz and 1.5Hz
- 16 tones selectable from the control panel (approved tones: Tone 0 and Tone 8)
- Hard addressed via 8 way DIP switch or soft addressed via MKII handheld programmer
- Flush or surface fixing
- Housed in UL V0 flame retardant ABS
Frequently bought together
Zeta
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (White) (MKII-AXTB/W)
Sale price£59.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta ZP4 Addressable Manual Call Point (MKI Protocol) (ZT-CP4/AD/STD)
Sale price£38.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta ZP4 Addressable Manual Call Point (ZT-CP4/AD)
Sale price£30.15
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta ZP4 Addressable Weatherproof Manual Call Point (ZT-CP4/AD/WP)
Sale price£74.35
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Addressable CP4 Manual Call Point in Outdoor/Tamperproof Housing (Red) (ZT-CP4/AD/WP/PLUS)
Sale price£70.30
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

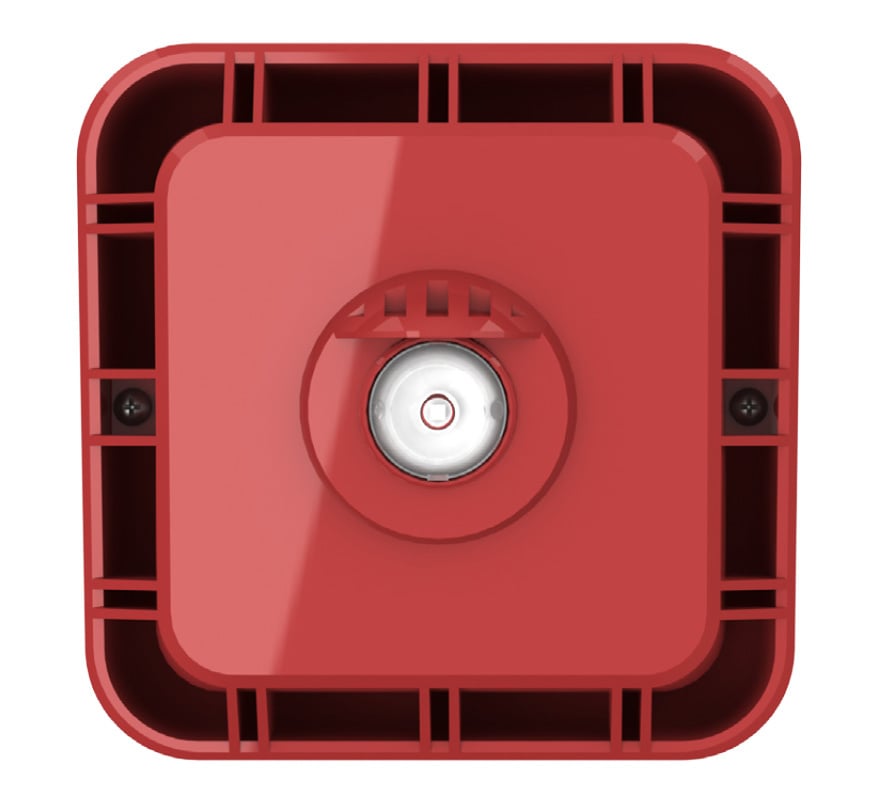

The Zeta Xtratone MKII-AXTB/R is an addressable combined wall sounder and visual alarm device (VAD) beacon with a red body and clear flash, for Zeta Fyreye MKII protocol addressable fire alarm systems. The beacon has a coverage pattern of W-3.1-9.1 and the sounder has 16 tones selectable at the control panel. Field wiring terminates at the back box for an "electronics free" first fix.
Key features
- Beacon coverage: W-3.1-9.1
- Flash rates between 0.33Hz and 1.5Hz
- 16 tones selectable from the control panel (approved tones: Tone 0 and Tone 8)
- Hard addressed via 8 way DIP switch or soft addressed via MKII handheld programmer
- Flush or surface fixing
- Housed in UL V0 flame retardant ABS
- 4 x 20mm cable entries (2 top, 2 bottom)
Technical specifications
- Part number: 42-617
- Colour: Red body, clear flash
- Operating voltage: 17-28V DC
- Quiescent current: 1.5mA
- Alarm current: 18 to 43mA
- Sound output: 98.2dB (Tone 0, reverberant conditions)
- Operating temperature: -10°C to +55°C
- Maximum humidity: 95% RH non-condensing
- IP rating: IP21C
- Size: 105 x 105 x 56mm (105 x 105 x 89mm with back box)
- Weight: 210g
Zeta Xtratone MKII Addressable Wall Sounder VAD Beacon (Red) (MKII-AXTB/R)
£59.60
