Zeta Beam Xtra Motorised Reflective Optical Beam Smoke Detector (70m) (ZT-BEAM/XTRA)

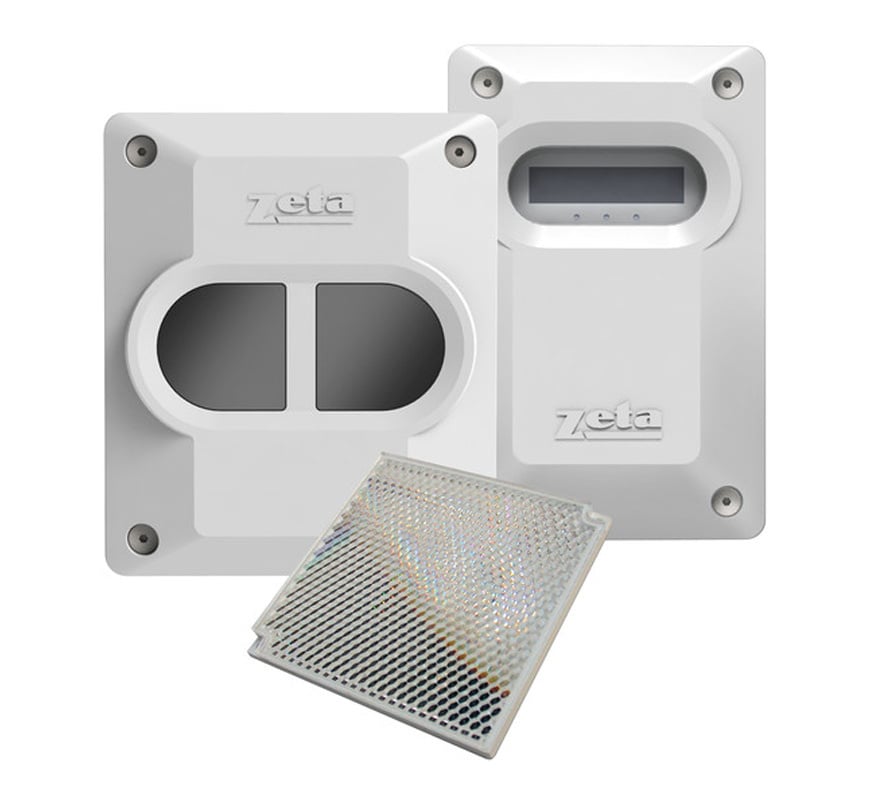

The Zeta Beam Xtra (ZT-BEAM/XTRA) is a motorised reflective optical beam smoke detector for protecting large open areas over distances of 7 to 70 metres. It is supplied with a low-level controller and one reflective cover. The motorised head aligns itself to the centre of the reflector during commissioning and automatically keeps alignment as the building moves, reducing false alarms and maintenance visits. It is compatible with most major fire panels and can be connected to an addressable loop via a zone monitor or Zeta SMM-B mini module.

Key features

• Motorised head unit with automatic alignment and beam contamination compensation
• Controller unit mounted at low level for easy testing and set-up
• Designed to comply with EN54 part 12; VdS approved
• Very low power consumption
• Range can be extended to 70-140m (ZT-BEAM/KIT140) or 140-160m (ZT-BEAM/KIT160)
• Selectable latching or auto-reset alarm (default auto-reset)

Technical specifications

• Protection range: 7 to 70 metres
• Head dimensions: 180 x 155 x 137mm (H x W x D)
• Controller dimensions: 185 x 120 x 62mm (H x W x D)
• Supply voltage: 10 to 30V DC
• Supply current: 3.5mA (constant current) in all operational states; 17mA in fast commissioning
• Operating temperature: -10°C to +55°C
• Humidity: 10 to 95% RH non-condensing
• Protection index: IP65 when suitably mounted and terminated
• Alarm sensitivity: 25% (1.25dB) to 50% (3dB) in 1% (0.05dB) steps, default 35% (1.87dB)
• Time to alarm: adjustable 2 to 30 seconds, default 10 seconds
• Alarm and fault relays: change-over contacts rated 2A @ 30V DC
• Maximum angular alignment: ±5°
• Fault sensitivity level: 90%
