Zeta ZP4 Addressable Manual Call Point (ZT-CP4/AD)
£30.15
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Approved to EN 54-11; LPCB approved (330m/04); CPR 2831-CPR-F4782
- Resettable element that mimics the feel of breaking glass
- Tri-colour status LED controlled by the panel: green pulse when polled, red for fire, yellow for isolator status
- Built-in short circuit isolator protects the loop
- High impact resistant ABS glass fibre material
- Optional CP4-CV polycarbonate cover (ordered separately) for double-action operation; CP4-KEY reset key available
Frequently bought together
Zeta
Zeta ZP4 Addressable Weatherproof Manual Call Point (ZT-CP4/AD/WP)
Sale price£74.35
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Addressable CP4 Manual Call Point in Outdoor/Tamperproof Housing (Red) (ZT-CP4/AD/WP/PLUS)
Sale price£70.30
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Beam Xtra Detector Range Extension Kit 140-160m (ZT-BEAM/KIT160)
Sale price£133.90
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Beam Xtra Detector Range Extension Kit 70-140m (ZT-BEAM/KIT140)
Sale price£60.30
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Beam Xtra Motorised Reflective Optical Beam Smoke Detector (70m) (ZT-BEAM/XTRA)
Sale price£535.50
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

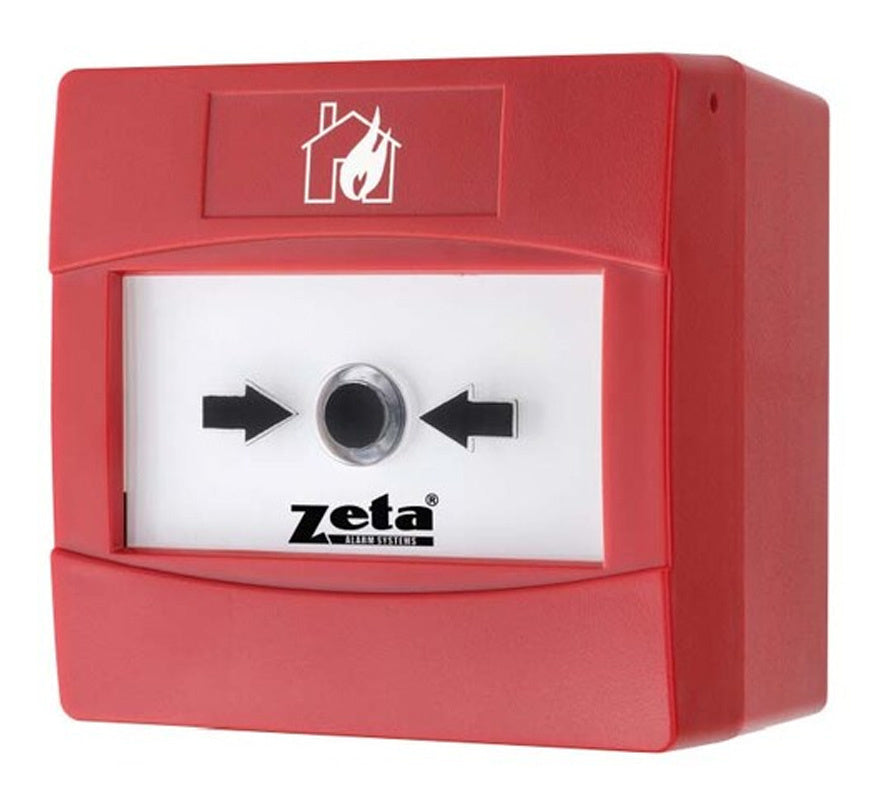

The Zeta ZT-CP4/AD is a red, surface mount addressable manual call point for Zeta's Fyreye MKII (Fyreye II) addressable fire alarm systems. Its resettable element mimics the feel of breaking glass, and a panel-controlled LED gives visual confirmation of activation. The call point has a built-in short circuit isolator for loop protection.
Key features
- Approved to EN 54-11; LPCB approved (330m/04); CPR 2831-CPR-F4782
- Resettable element that mimics the feel of breaking glass
- Tri-colour status LED controlled by the panel: green pulse when polled, red for fire, yellow for isolator status
- Built-in short circuit isolator protects the loop
- High impact resistant ABS glass fibre material
- Optional CP4-CV polycarbonate cover (ordered separately) for double-action operation; CP4-KEY reset key available
Technical specifications
- Input voltage: 17 to 28V DC
- Quiescent current: 600µA max
- Alarm current: 2.5mA max
- Element type: resettable
- Operating temperature: -20°C to +60°C
- Max humidity: 95% RH non-condensing
- Standards: EN 54-11 and EN 54-17
- IP rating: IP32
- Size: 85 x 85 x 61mm
