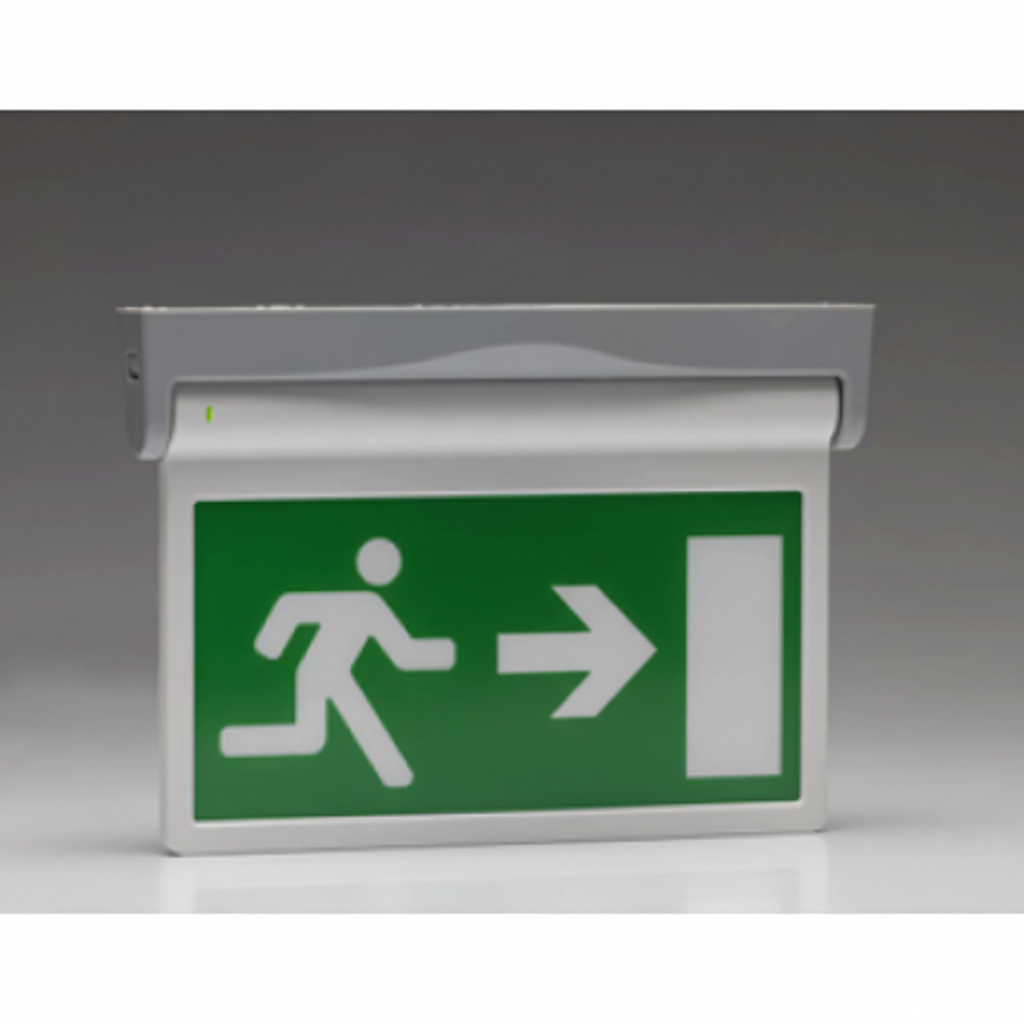

The Advanced ESXL/ISOAR is an EasySafe low-voltage escape sign luminaire for the LuxIntelligent emergency lighting system. It is a standard 3-hour maintained escape sign with a single-sided ISO format arrow right legend, and is supplied complete with base and battery pack.
EasySafe luminaires are powered entirely from the LuxIntelligent data loop at 32V DC, so no local 230V mains feed is needed, which saves labour and materials. The panel uses a LuxIntelligent I/O peripheral to monitor local distribution boards so the lights react to a power outage. The sign runs at low illumination under normal conditions (useful in cinemas and theatres) and switches to maximum output on a power failure, giving a 25-metre viewing distance for 3 hours from its internal NiMH battery pack.
Key features
- ISO format legend, arrow right
- Wall or ceiling mounting; a small screw fixes the hanging angle
- Installed base first, like a fire detector; the luminaire body clicks into place
- Powered from the LuxIntelligent data loop at 32V DC; no 230V connection required
- Low maintained luminance, switching to full output on power failure
- Long-life, low-energy LED technology with reflective screens for even legend illumination
- Fully compatible with the LuxIntelligent test system
- Complies with EN 60598-2-22
Technical specifications
-
Part code: ESXL/ISOAR
-
Operation: 3 hour maintained
-
Supply voltage: Low voltage (32V)
-
Operating voltage: 18-32V
-
Quantity per loop: Up to 50 EasySafe luminaires
-
Light source: High-output white LEDs
-
Cable termination: 15/16 AWG, 1.3/2.0mm²
-
Body: PC/ABS
-
Colour: White body (RAL 9003), grey base and bracket (Pantone 429)
-
Dimensions: 301 (L) x 212 (H) x 80 (D) mm
-
Weight: 0.738kg including battery pack
-
Battery: 4 x AAA NiMH, 4.8V 600mAh pack
-
Viewing distance: 25m
What's in the box
- Escape sign luminaire with ISO arrow right legend
- Base
- Battery pack
