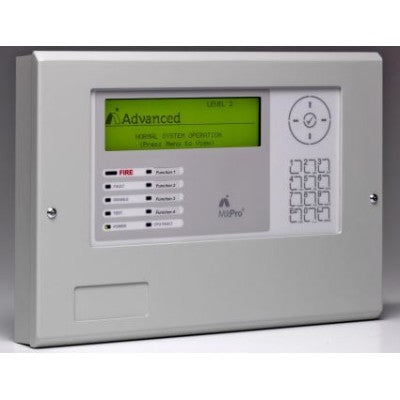

Advanced MX-4010 Remote Display Terminal with standard network interface, 24V DC

The Advanced MX-4010 is an MxPro 4 series Remote Display Terminal (RDT) with a standard network interface, running from a 24V DC supply. It shares the graphical LCD user interface and flash-based microprocessor technology of the MxPro 4 fire panels and communicates with them over the same 2-core network cable.

The display can be programmed by individual zone or sector for any combination of fires, faults, pre-alarms or plant alarms; for example, it can show all information for its own sector but only fire signals from other sectors of a building.

Key features

• Standard network interface
• Works on the Ad-NeT peer-to-peer network, with full cross-panel reporting, control and cause-and-effect
• Buzzer mute, view, enable/disable and test facilities with dedicated system and navigation keys
• Integral network interface with screen termination to prevent mains-frequency earth-loop currents between network nodes
• Configurable for virtually any language or character set, with the installer's logo and company details on the LCD
• Fully programmable on site via the alphanumeric keypad or PC configuration tools

Technical specifications

• Display: Backlit 240 x 64 graphical LCD
• Keypad: Alphanumeric keypad, navigation keys and on-board buzzer mute
• Key switch input: Optional level 2 access enable key switch
• Power supply input: 24V DC, 150mA, operating range 15-30V
• External supply monitoring: Monitored external fault input
• Number of fire zones: 2,000
• Ports: 1 x USB, 1 x RS232 for PC, modem or external printer
• Programming: On-board keypad or Windows PC
• Enclosure: Steel, IP30, light grey RAL 7035
• Cable entries: 4 x top, 4 x rear (20mm knockouts)
• Dimensions (H x W x D): 218 x 300 x 44mm; back box only (when recessing) 218 x 300 x 30mm
• Compatible bezel: MXM-008 semi-flushing bezel for Mx-4010 / Mx-4020
