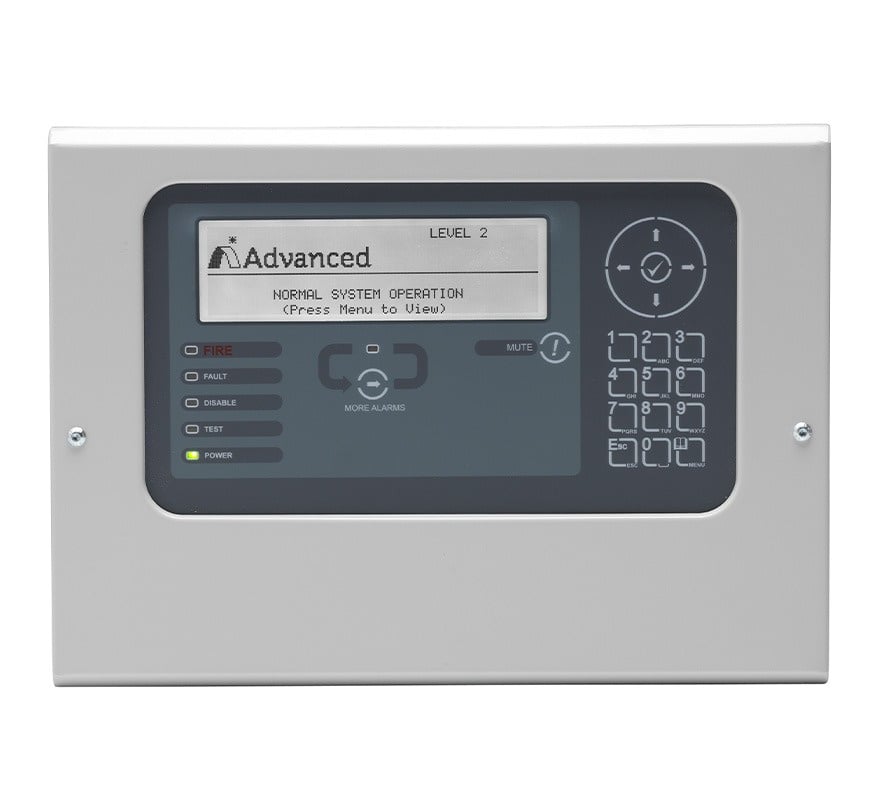

The Advanced MX-5010 is the MxPro 5 series Remote Display Terminal (RDT) for a standard network. It uses the same graphical LCD user interface and flash-based microprocessor technology as the MxPro 5 fire panels, and communicates with them over the same 2-core Ad-NeT network cable to display system information at a remote location.
Its display can be programmed by individual zone or sector, for example to show all information for its own sector but only fire signals from other sectors of a building. A Mute key allows the warning buzzers of other networked panels to be muted.
Key features
- Standard network version (fault-tolerant version is MX-5010/FT)
- Ad-NeT / Ad-NeT+ compatible: true peer-to-peer network with full cross-panel reporting, control and cause-and-effect for up to 2,000 zones
- Integral network interface with special screen termination to prevent mains-frequency earth-loop currents between network nodes
- Display fully programmable by zone or sector for any combination of fires, faults, pre-alarms or plant alarms
- Buzzer mute, view, enable/disable and test facilities with dedicated system and navigation keys
- Fully programmable on site via the alphanumeric keypad or PC configuration tools
- Configurable for virtually any language and character set, with the installer's logo and company details shown on the LCD
- Programmable switch input and slide-in labels
- Small, robust and compact; 24V DC operation
- 3-year warranty as standard
Technical specifications
-
Display: White backlit 240 x 64 graphical LCD
-
LED indicators: Red (Fire / Alarm), 1 green (Power), 3 amber (Fault and System)
-
Controls: Alphanumeric keypad, navigation keys and buzzer mute; system key for Mute
-
Key switch input: Optional level 2 access enable key switch
-
Power supply input: 24V DC, 115mA, operating range 15-30V
-
External supply monitoring: Monitored external fault input
-
Number of fire zones: 2,000
-
Ports: 1 x USB
-
Programming: On-board keypad or PC running Windows tools
-
Enclosure: Steel, IP30, RAL 7035
-
Cable entries: 4 x top, 4 x rear (20mm knockouts)
-
Dimensions (H x W x D): Enclosure 218 x 300 x 44mm; back box only (when recessing) 218 x 300 x 30mm
-
Approvals: EN 54-2:1997 +AC:1999 +A1:2006; EN 54-4:1997 +AC:1999 +A1:2002 +A2:2006
-
Options: MXM-521 semi-flushing bezel; MXM-543-BB spare back box; MXM-543-D1 spare panel cover; MXM-543-D2 spare panel cover with key switch aperture
