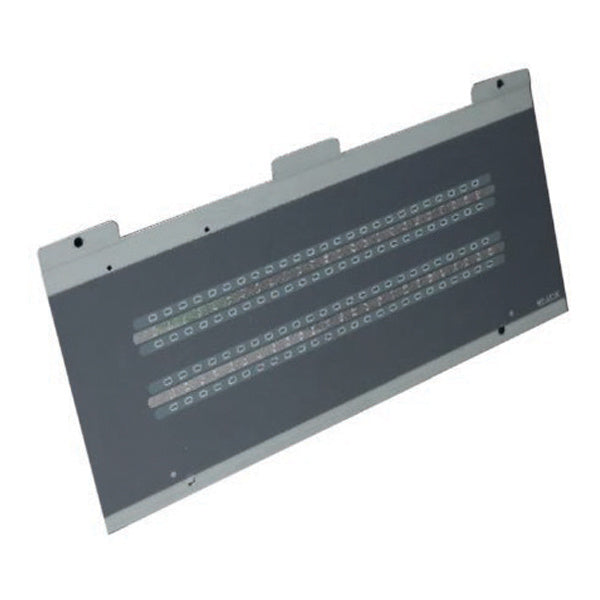

The Advanced MXP-513-050YL is a 50-zone LED indicator card for MxPro 5 fire alarm control panels in the extended enclosure, with 50 yellow LEDs, indicating Fault.
Zone LED cards give an individual LED indication for each zone in addition to the panel's graphical display, and fully support dynamic zoning on networked or larger stand-alone systems. Each LED is fully programmable, so it can follow the cause-and-effect strategy and light on Fault, Isolation, Output Group and other conditions as well as Fire.
Key features
- 50 individual zone LEDs
- Programmable LEDs following the panel's cause and effect
- Supports dynamic zoning
- Factory fitted or retrofit
- Cost effective against ancillary hardware
- 3-year warranty as standard
Technical specifications
-
Zones: 50
-
LED arrangement: 50 x yellow (Fault)
-
Enclosure: Extended enclosure
-
Compatible panels: MX-5401E to MX-5404E and the MX-5800 series 2-8 loop panels (including /FT versions)
-
Panel series: MxPro 5
