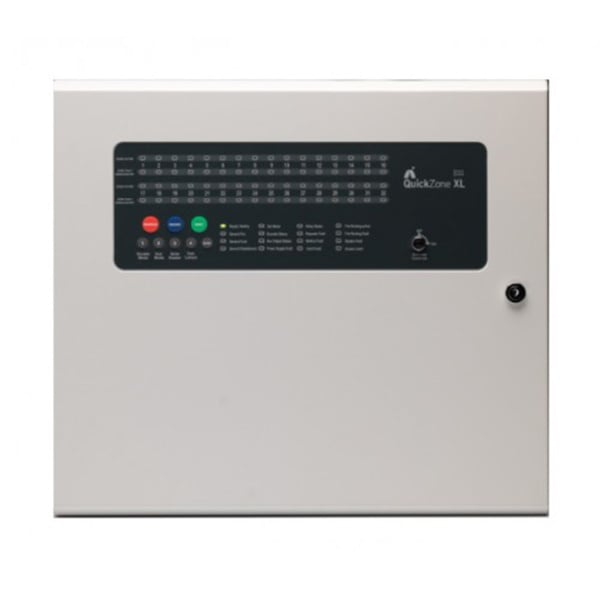

Advanced QZXL-32 QuickZone XL 32 Zone panel

The Advanced QZXL-32 QuickZone XL is a 32 zone conventional fire alarm control panel with an integral power supply and space for standby batteries. It is approved to EN 54-2 and EN 54-4 and works with a wide range of conventional fire detectors, including Apollo, Argus, Hochiki and Nittan.

Dependency modes A, B and C help reduce false alarms, and a one-man walk test simplifies maintenance.

Key features

• 32 conventional fire zones
• Four monitored sounder circuits with 500mA resettable fuses
• Fire and fault volt-free changeover relays, plus programmable switched negative outputs for fire, fault, disablement and reset
• Class change and alert inputs
• Fire alarm routing output
• Three dependency modes to manage false alarms
• One-man walk test, with or without sounders
• Integral detector removal monitoring
• Key switch or code entry for access level 2
• Networks up to 8 control panels
• Integral 5A switch mode PSU with space for two 18Ah batteries
• Spacious enclosure for easy installation and cabling

Technical specifications

• Zones: 32, conventional
• LED indicators: 33 red (1 x fire, 32 zonal), 1 green (power), plus amber zonal, fault and system LEDs
• Controls: Colour-coded Resound, Silence and Reset buttons, 1-4 numerical buttons and Enter
• Programming: Via on-board buttons
• Sounder circuits: 4 monitored (500mA resettable fuse)
• On-board relays: 2 auxiliary clean changeover relays (1 fire, 1 fault), 3A max at 30V DC
• Auxiliary supply: 28V DC 400mA continuous
• Mains supply: 230V 50Hz (+10% / -15%), 1.9A max
• Battery capacity: 2 x 18Ah 12V SLA, internal (batteries not included)
• Charger: Limited to 2.0A (27.0V DC at 20°C, temperature compensated)
• Networking: Up to 8 control panels
• Enclosure: Lockable steel, IP30, RAL 7035
• Cable entries: 41 x top, 35 x rear (20mm knockouts)
• Dimensions (H x W x D): Back box 400 x 450 x 130mm; door 410 x 465 x 25mm
• Weight: 8kg
• Approvals: EN 54-2, EN 54-4
