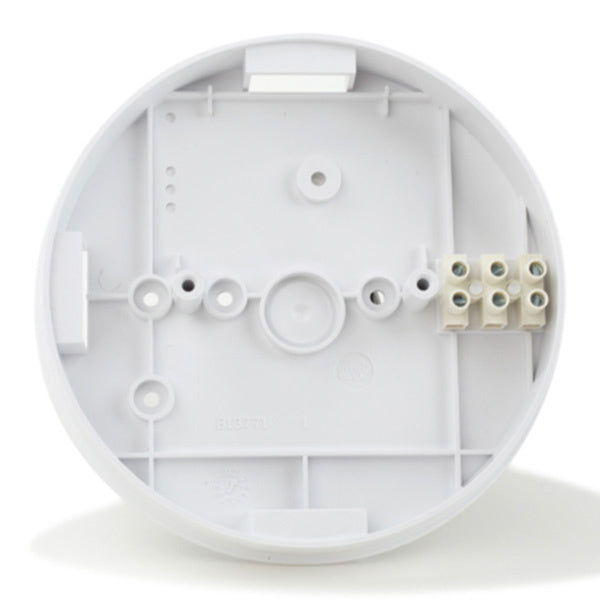

The Aico Ei127 Surface Mounting Kit gives extra space for wiring connections behind Aico mains-powered smoke and heat alarms. It is particularly useful on concrete ceilings or where the wiring runs in surface trunking.
It has a fitted three-way connector block and three trunking knock-outs for surface wiring, plus a centre knock-out for recessed wiring. The standard mounting plate supplied with the alarm fixes to the Ei127 using the screws provided.
Key features
- For Aico 3000, 2110e, 160e and 140RC Series smoke and heat alarms
- Also suitable when the alarm is mounted on an Ei168RC RadioLINK base
- Fitted three-way connector block
- 3 x 16/25mm trunking knock-outs and a centre knock-out
- Alarm mounting plate fixes on with the screws provided
Technical specifications
- Model: Ei127
- Compatible with: Aico 3000, 2110e, 160e and 140RC Series alarms
- Knock-outs: 3 x 16/25mm trunking; 1 x centre (recessed wiring)
- Dimensions: 135mm diameter x 20mm depth
- Weight (including packaging): 120g
- Manufactured in Ireland
