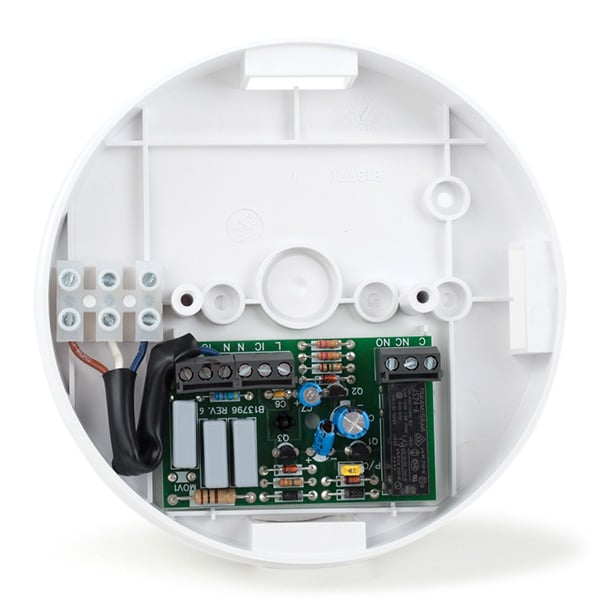

Aico Ei128R Mains Powered Relay Module

The Aico Ei128R is a mains powered hard-wired relay module that triggers external devices, such as a strobe light, telecare device, door closer or remote sounder, when the alarms in the property activate. It operates on receipt of a signal from the interconnect line of an Aico smoke, heat or CO alarm.

It is compatible with Aico 3000, Ei2110e, 160e and 140RC Series alarms and fits underneath an easi-fit or RadioLINK base, with a cover supplied for remote siting. Note that the relay does not operate if mains power is not present.

Key features

• Volt-free contacts (normally open or normally closed) as standard
• Can be configured for a 230V output, or 24V using an external 24V supply
• Continuous or pulse operation (pulse returns contacts after 5 seconds)
• Fits under the footprint of an easi-fit or RadioLINK base; cover supplied
• Additional trunking knockouts and 4-way connector block

Technical specifications

• Supply: mains powered
• Relay contacts: rated up to 240V AC / 5A
• System size: up to 12 interconnected units in total (the relay counts as one)
• Knockouts: 3 x 25mm trunking knockouts plus centre knockout for recessed wiring
• Dimensions: 135mm diameter x 20mm deep
• Weight including packaging: 170g
