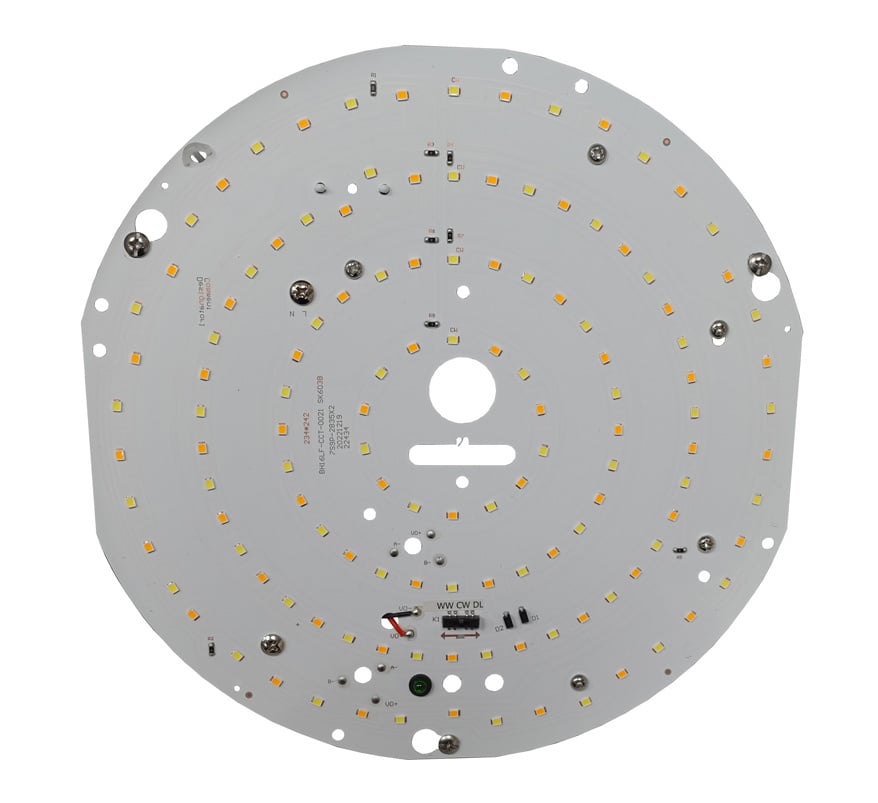

BLE FORGE Circular 2D Style Gear Tray - 15W - 3CCT - LiFePO4 - Step Dim Microwave Sensor (EL-193450-M3-SD)

The BLE FORGE EL-193450-M3-SD is a 15W circular 2D-style LED gear tray with 3CCT colour temperature and a 3-hour emergency function. An integral step-dim microwave sensor dims the light when the area is unoccupied and restores full output when movement is detected. It is designed for retrofitting into existing 2D-style fittings, with a replaceable 6.4V LiFePO4 battery providing emergency lighting if the mains supply fails.

Key features

• Circular 2D-style LED gear tray
• Perfect for retrofit applications
• Aluminium construction
• 3CCT selectable colour temperature
• 3-hour emergency version
• Integral step-dim microwave sensor

Technical specifications

• Part number: EL-193450-M3-SD
• Supply: 220-240V AC, 50Hz
• Power: 15W
• Power factor: 0.9
• Electrical class: Class I
• Light source: LED
• Colour temperature: 3CCT
• CRI: 80
• Mains lumen output: 2100lm (at 4000K)
• Emergency lumen output: 260lm (at 4000K)
• Emergency duration: 3 hours
• Testing: Manual
• Battery: LiFePO4 6.4V, 1.0Ah, replaceable
• Recharge time: 24 hours
• Sensor: Step Dim Microwave Sensor
• Detection area: 14m max
• Daylight threshold: 2lux/10lux/50lux/Disable
• Housing: Aluminium
• Colour: White
• Diameter: 244mm
• Weight: 366g
• Operating temperature: +5 to +45°C
• Lamp life: 50,000 hours
• Product warranty: 5 years
• Battery warranty: 5 years
• Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
• Marking: CE and UKCA
