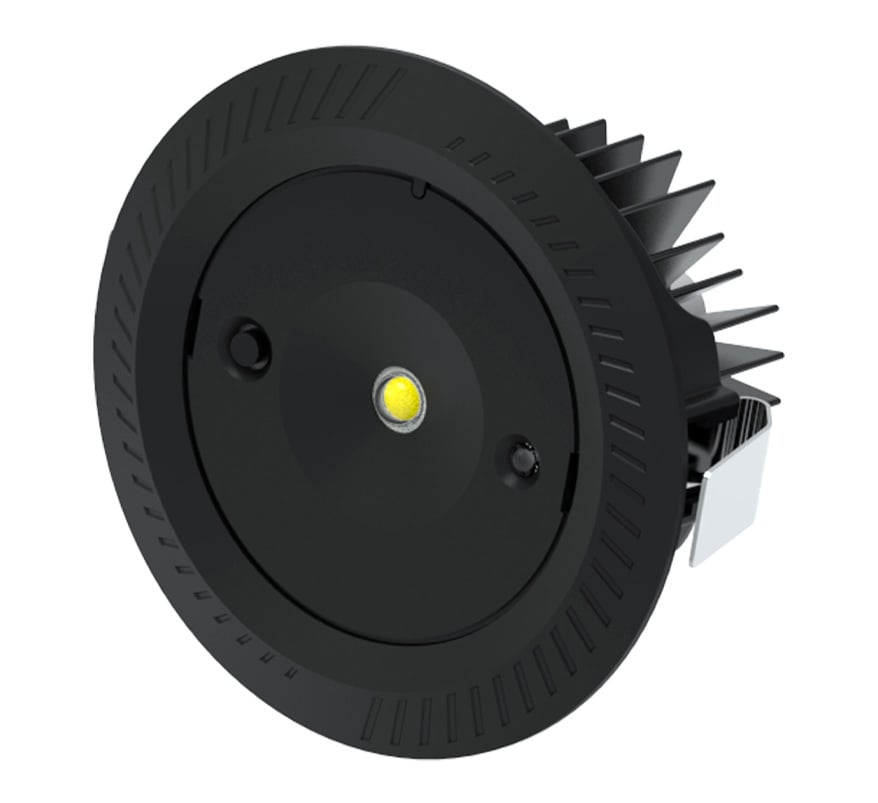

The BLE RICHMOND EL-152450-BL is a compact, non-maintained LED emergency downlight in black, recessed into the ceiling through a 60mm cut-out. Its small 70mm diameter makes it a discreet choice for emergency lighting, and it gives a 3-hour emergency duration from a 3.2V LiFePO4 battery.
Key features
- Discreet, small-diameter recessed design
- Green LED healthy charge indicator
- Low power consumption
- Can be connected and fixed without opening the housing
- Convenient, time-saving installation
Technical specifications
- Part number: EL-152450-BL
- Supply: 220-240V AC, 50Hz
- Power: 2.5W
- Power factor: 0.3
- Electrical class: Class I
- Light source: SMD LED
- Colour temperature: 6500K
- CRI: 70
- Beam angle: 125°
- Emergency lumen output: 119lm
- Mode of operation: Non-maintained
- Emergency duration: 3 hours
- Testing: Manual
- Battery: LiFePO4 18650 3.2V, 1.5Ah
- Recharge time: 24 hours
- IP rating: IP20
- IK rating: IK08
- Housing: Polycarbonate
- Colour: Black
- Mounting: Recessed
- Dimensions: Ø 70mm, D 33mm
- Cut-out: 60mm
- Weight: 210g
- Operating temperature: 0 to +40°C
- Lamp life: 50,000 hours
- Product warranty: 5 years
- Battery warranty: 5 years
- Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
- Marking: CE and UKCA
