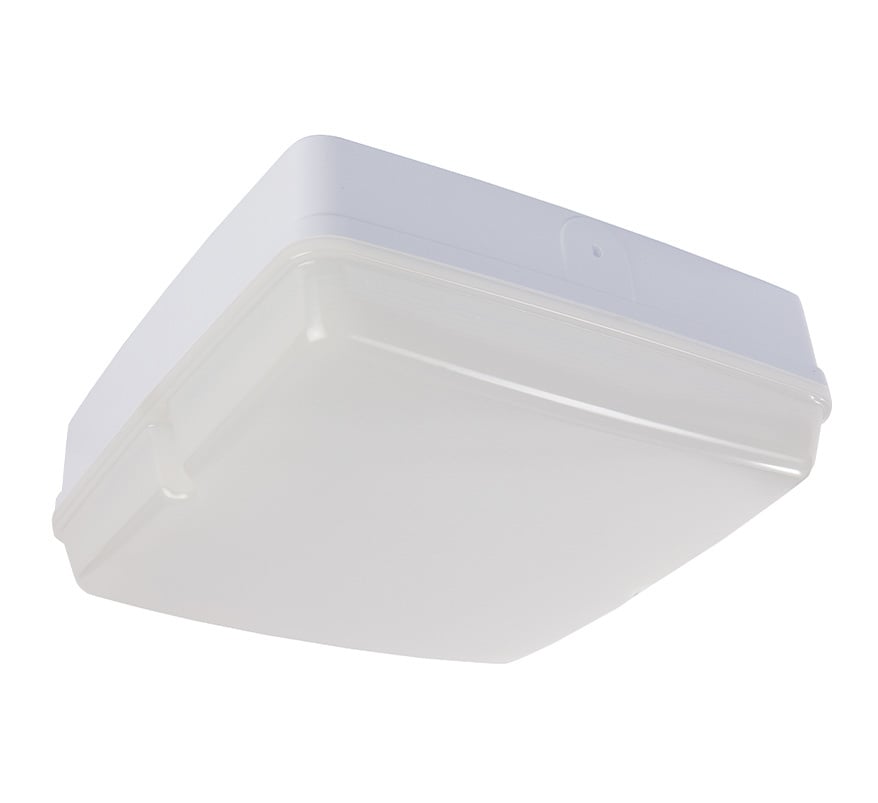

The BLE WHIRLOW EL-120901-WH-M3-MW is a square LED amenity light with a white base and a 3-hour emergency function. An integral microwave sensor switches the light on when movement is detected. Its IP65, weatherproof construction makes it suitable for a wide range of internal and external applications, with a replaceable 6.4V LiFePO4 battery providing emergency lighting if the mains supply fails.
Key features
- IP65 rated and weatherproof
- Easy to install and maintain
- Reduced power consumption
- Surface mounted
- Impact-modified polycarbonate housing and diffuser
- 3CCT selectable colour temperature
- Integral microwave presence sensor
- 3-hour emergency version
Technical specifications
- Part number: EL-120901-WH-M3-MW
- Supply: 220-240V AC, 50Hz
- Power: 15W
- Power factor: 0.76
- Electrical class: Class I
- Light source: LED
- Colour temperature: 3CCT
- CRI: 80
- Beam angle: 110°
- Mains lumen output: 1090lm
- Emergency lumen output: 230lm
- Emergency duration: 3 hours
- Testing: Manual
- Battery: LiFePO4 6.4V, 1.0Ah, replaceable
- Recharge time: 24 hours
- Sensor: Microwave Sensor
- Maximum mounting height: 3.5m
- Detection area: 8m at 2.5m high
- Daylight threshold: 10 lux to 500 lux
- IP rating: IP65
- IK rating: IK10
- Housing: Polycarbonate
- Diffuser: opal polycarbonate
- Colour: White
- Mounting: Surface
- Dimensions: L 276mm, W 276mm, D 97mm
- Weight: 1656g
- Operating temperature: 0 to +40°C
- Lamp life: 50,000 hours
- Product warranty: 10 years
- Battery warranty: 10 years
- Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
- Marking: CE and UKCA
