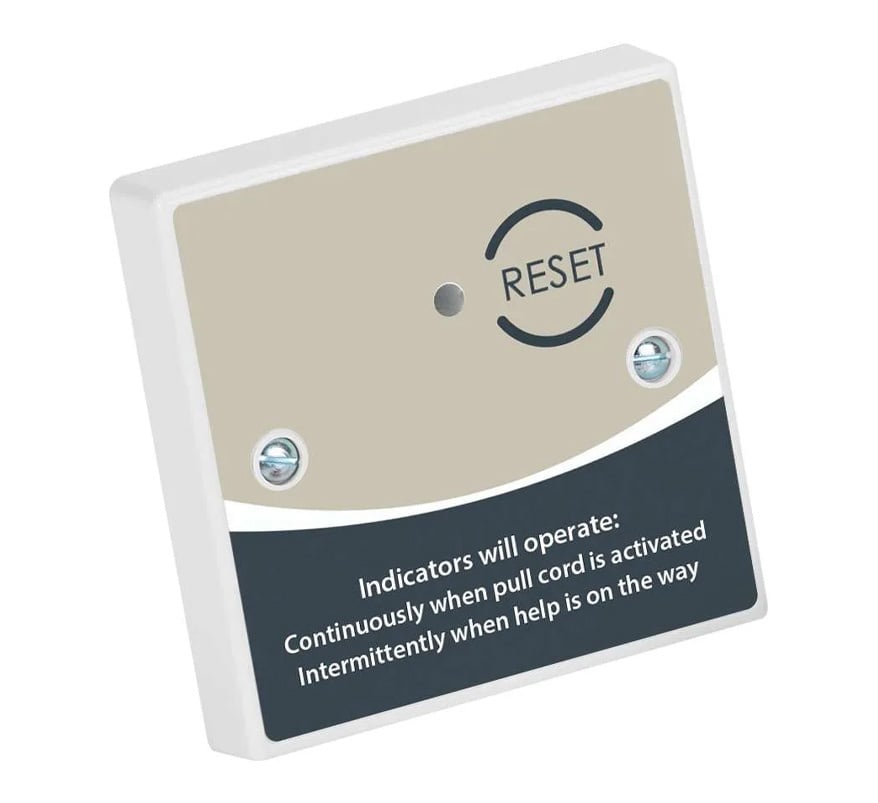

The C-TEC NC809DBBT is a remote reset point with sounder, designed for accessible toilet alarm systems using C-TEC's 800 Series conventional call system. It lets calls raised by an NC807C ceiling pull be cancelled at source, inside the WC. It is also part of the NC951 Accessible Toilet Alarm Kit.
Key features
- Cancels accessible toilet calls at source, inside the WC
- Reassurance LED and sounder show that a call has been acknowledged, so the user knows help is on the way
- Calls are acknowledged at an NC943B single zone call controller or an NC910/NC920 10 to 20 zone call controller, using the 800 Series 'Call Accept' function
- Mounts on a standard UK 25mm single gang flush or surface back box
Technical specifications
- System: C-TEC 800 Series conventional call systems
- Quiescent current: 0mA
- Indicators: red reassurance LED and sounder
- Controls: reset button
- Connections: SIG (signal), -Ve, +Ve
- Dimensions: 87mm (W) x 87mm (H) x 24mm (D)
- Construction: plastic
- IP rating: IP41
- Weight: 55g
- Operating temperature: -5°C to +40°C, max 95% relative humidity (non-condensing)
