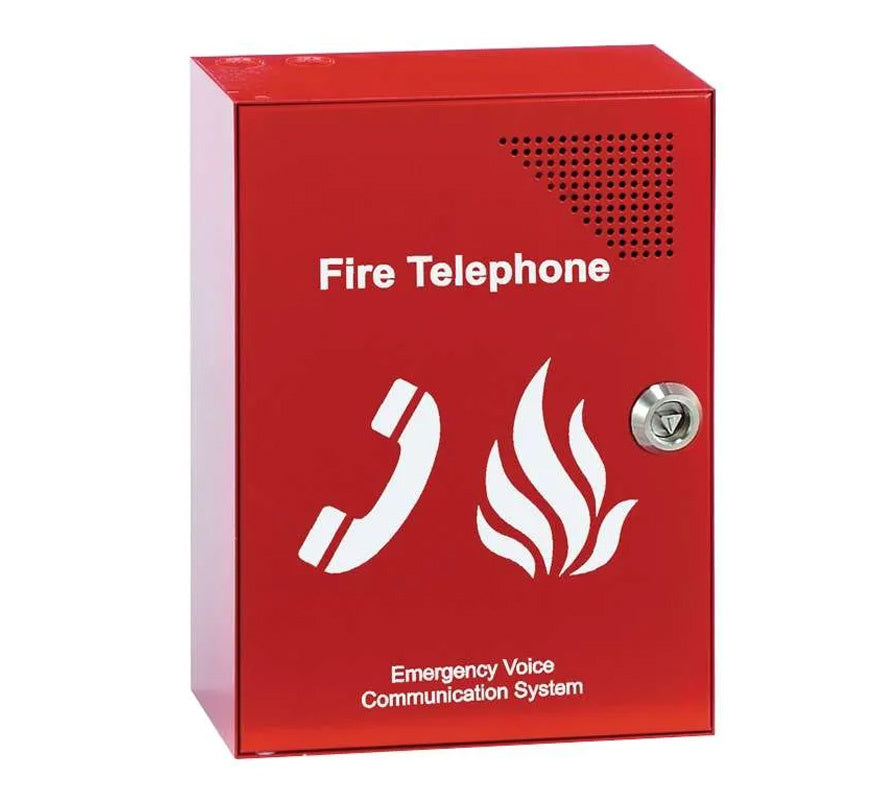

The C-TEC EVC301RLK is a Type A fire telephone outstation with a telephone-style handset, supplied in a durable 'lift key' lockable red steel case. It is part of C-TEC's SigTEL emergency voice communication (EVC) system. It is designed for surface mounting; semi-flush mounting requires the T-BEZ301 bezel.
Key features
- Type A fire telephone outstation with telephone-style handset
- For fire telephone and stadium marshalling applications
- Lets stewards and fire marshals communicate with a SigTEL Master Controller, and vice versa
- Reliable two-way communication in a fire emergency between a permanently manned control room and key points of a site
- True duplex speech
- Pulsed ringing tone at the outstation when called from the control room
- Lift-key lock mechanism (lift lock keys must be issued to relevant personnel by the person responsible for the system)
- Meets and exceeds the requirements of BS 5839-9 when correctly installed
Technical specifications
- Supply voltage: 11V DC from a compatible SigTEL Master Controller (drops to 6V DC when in use)
- Quiescent current: 1mA
- Activation current: 25mA (handset in use)
- Microphone frequency response: 250Hz to 5kHz ±3dB
- Loudspeaker frequency response: 250Hz to 4kHz ±3dB
- Dimensions: 202mm (W) x 278mm (H) x 100mm (D)
- Mounting: surface; optional semi-flush mounting with T-BEZ301 bezel
- Construction: red steel (RAL 3000)
- IP rating: IP20
- Weight: 3kg
- Operating temperature: -5°C to +40°C, max. 95% relative humidity
