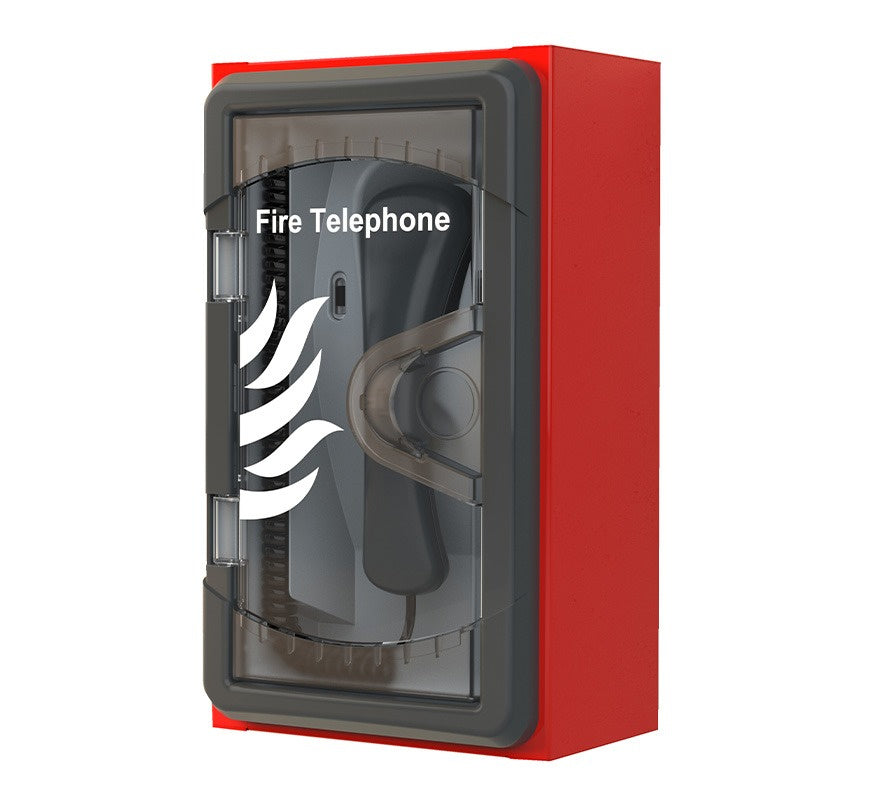

The C-TEC EVC302RPO is a SigTEL Type A fire telephone outstation with a telephone-style handset, housed in a wall-mounted red mild steel enclosure with a non-locking plastic door. It is part of C-TEC's SigTEL emergency voice communication (EVC) fire telephone system, providing reliable two-way communication in a fire emergency between a permanently manned control room and strategic points on a site. It can be surface mounted, or flush mounted using the T-BEZ302 bezel. A lift-key lockable version (EVC302RLK) is also available.
Key features
- Type A fire telephone outstation with telephone-style handset
- Non-locking plastic door for quick access
- For fire telephone and stadium marshalling applications
- Lets stewards and fire marshals communicate with a SigTEL Master Controller, and vice versa
- True duplex speech
- Pulsed ringing tone at the outstation when called from the control room
- Surface mounting, or flush mounting with the optional T-BEZ302 red mild steel bezel
- Meets and exceeds the requirements of BS 5839-9 when correctly installed
Technical specifications
- Input voltage (from EVCS controller): 10.7V DC quiescent, 5V DC in use
- Current consumption: 1mA quiescent, 25mA in use
- Microphone frequency response: 250Hz to 5kHz ±3dB
- Earpiece frequency response: 250Hz to 4kHz ±3dB
- Cable: 1 x 2-core enhanced fire-rated cable, 1.0mm² to 1.5mm²; max. 40 ohms per line (1km of 1mm² cable)
- Cable knockouts: 4 x 20mm
- Dimensions: 297mm (H) x 175mm (W) x 102mm (D)
- Fixing centres: 240mm (H) x 120mm (W)
- Construction: mild steel back box (red RAL 3000), plastic door
- IP rating: IP21 (indoor use only)
- Weight: 2.2kg
- Optional T-BEZ302 bezel: 338.5mm (H) x 216.5mm (W) x 20mm (D)
