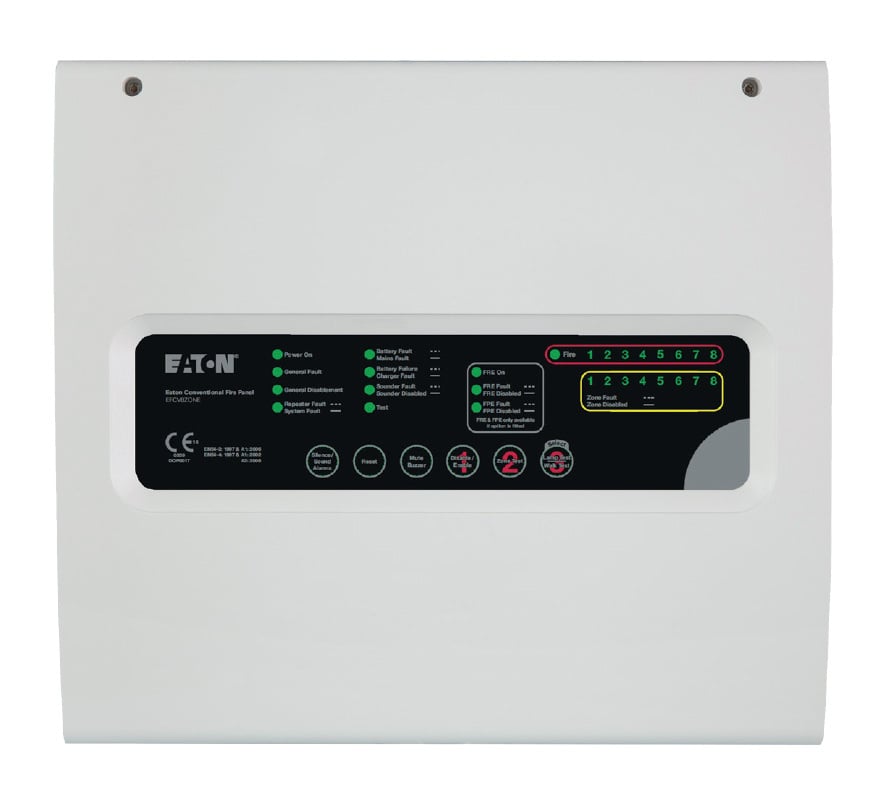

The Eaton Flexi EFBW8ZFLEXI is an 8 zone fire alarm control panel that can run each zone as either a BiWire (two-wire) or a standard conventional zone. Because every zone is configured individually, BiWire and conventional devices can be mixed on the same system, which makes the panel well suited to new installations, extensions and upgrades of existing conventional systems. It is certified to EN 54-2 and EN 54-4 and designed to meet the recommendations of BS 5839-1.
Key features
- Each of the 8 zones can be set to BiWire or conventional mode
- Connect an existing conventional system to a BiWire system
- Compatible with two-wire and conventional EN 54-23 certified visual alarm devices (VADs)
- Up to 32 detectors and manual call points per zone
- Conventional sounder circuits: none if all zones are BiWire, 2 if up to 4 zones are conventional, 4 if 5 or more zones are conventional
- Volt-free Fire, Fault and Interlink relays plus an auxiliary output
- Class change input to activate all sounders
- RS485 repeater port
- Straightforward, intuitive interface for simple programming and maintenance
Technical specifications
- Zones: 8
- Devices per zone: BiWire mode max. 32 BiWire detectors and call points (total alarm load including BiWire sounders not to exceed 200 mA); conventional mode max. 32 conventional detectors and call points
- Maximum loading per zone: 200 mA
- Zone voltage: standby 19-23 V DC; alarm 31-33 V DC
- Zone fuse protection: 250 mA PTC
- End-of-line: BiWire zones EOLM-3 only; conventional zones EOLM-1 or EOLM-3
- Sounder circuits: 250 mA max. per circuit, 250 mA PTC, 6K8 end-of-line resistor
- Relays (Fire, Fault, Interlink): volt-free SPDT, rated 30 V DC 1 A
- Auxiliary output: 18.15-30.7 V, 50 mA max.
- Mains input: 230 V AC, 50 Hz
- Input voltage range: 18.75-30.7 V
- Maximum current drawn from battery: 2.7 A
- Batteries: 2 x 12 V 5 Ah (MB512), not included
- Operating temperature: -5°C to +40°C
- Relative humidity: 93% ±3%, non-condensing
- Ingress protection: IP30
- Dimensions (H x W x D): 336 x 375 x 134 mm
- Weight: 2.25 kg (excluding batteries)
- Material: PC ABS front and rear
- Cable entry: 29 x 20 mm knockout positions plus rear cable entry slots
- Cable: 2 core 1.5 mm screened fire-rated cable (e.g. FP200 or Firetuf FT120), max. 500 m per zone
- Standards: EN 54-2 and EN 54-4, BS 5839-1
