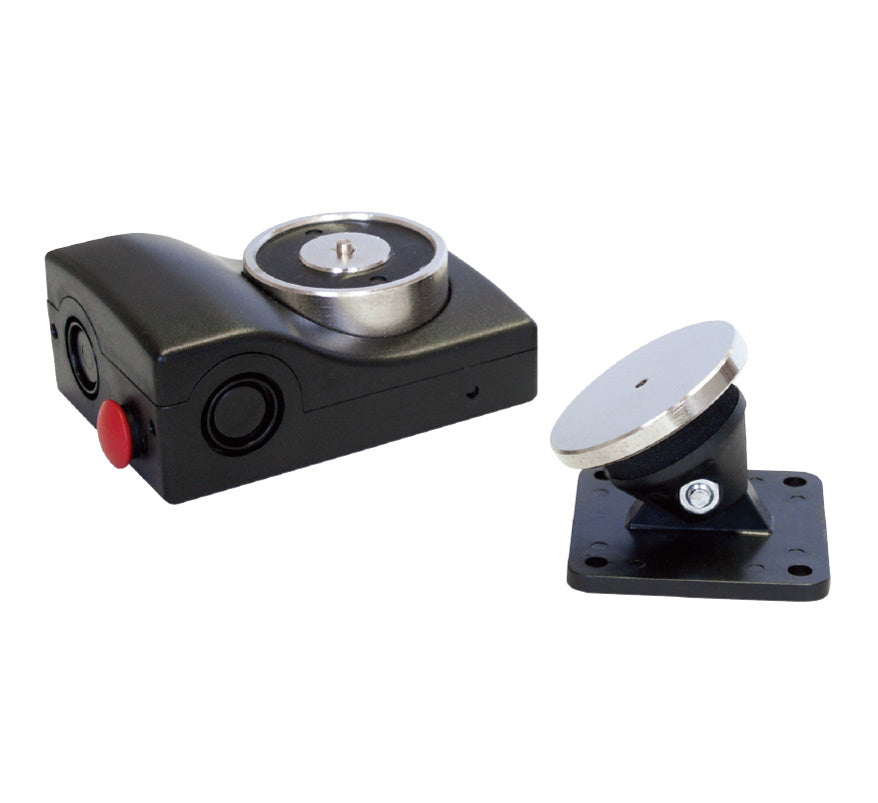

The Eaton Fulleon 13050-CSA is a Series 13000 electromagnetic fire door retainer in a black thermoplastic (ABS) housing. It holds fire doors open during normal use and releases them to close automatically when the fire alarm system, or another signal, removes the 24V DC supply.
Approved to EN 1155, it has a 50kg (490N) holding force for large and small commercial fire doors and draws a low current, so it places little load on the fire alarm or door release power supply. A release button lets the door be closed by hand when the fire system has not operated.
Key features
- Electromagnetic fire door retainer approved to EN 1155
- 50kg / 490N holding force, suitable for large and small fire doors
- Low current consumption
- Release button and protection circuit
- Adjustable damping keeper plate to allow for door misalignment
- Anti-residual release pin
- Wall mounting, or floor mounting with an optional bracket
Technical specifications
-
Catalogue number: 13050-CSA
-
Series: Fulleon Series 13000
-
Holding force: 50kg / 490N
-
Voltage: 24V DC
-
Current: 45mA
-
Housing: ABS, black
-
Ingress protection: IP40
-
Weight: 560g
-
Mounting: Wall mounting; floor bracket available
