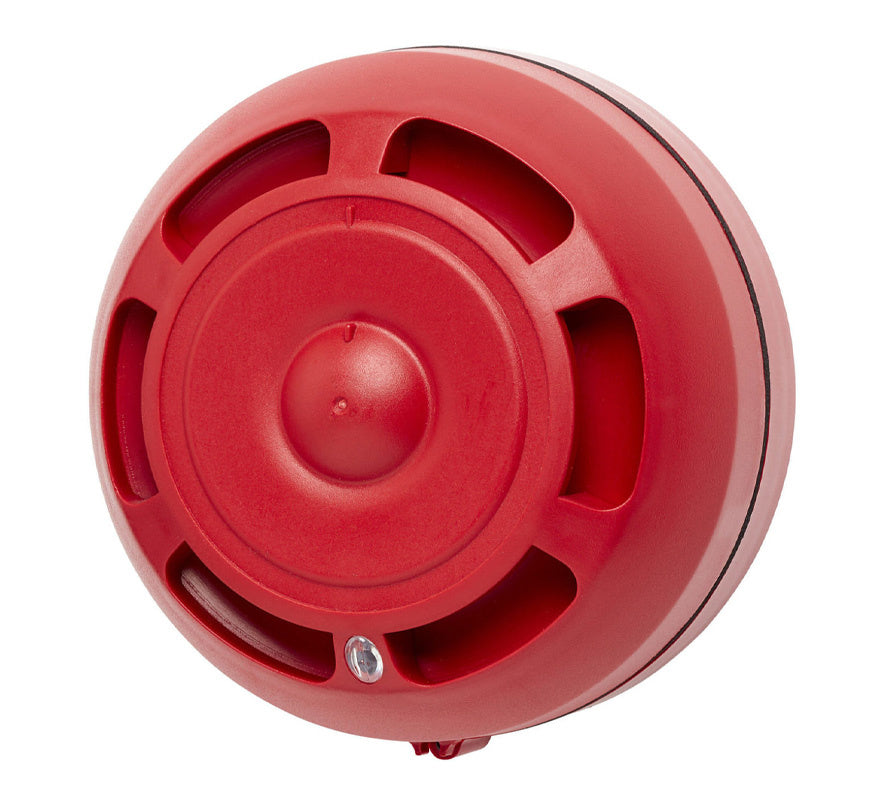

The Fike Twinflex F0296337 is a red wall-mounted 2-wire, zone-powered sounder for Fike Twinflex fire alarm systems.
It gives audible indication when the system goes into alarm and is compatible with Twinflex V3, Pro and Pro² panels.
Key features
- Zone-powered device for Twinflex 2-wire systems; mixes on the same zone as Twinflex ASD detectors
- DIP switch selection of volume (high/low) and 3 sound patterns: alternating 800/970 Hz, continuous 970 Hz, or sweep 800 to 970 Hz
- Built-in end-of-line function, enabled by DIP switch on the last device
- IP65 when fitted with the supplied gasket and O-ring and suitable glands
- Twist-lock front onto base
Technical specifications
- Part number: F0296337
- Standard: EN 54-3 (Type A)
- Sound output: high 95+ dB(A); low 65+ dB(A)
- Dimensions: 104 mm diameter x 80 mm high
- Operating temperature: -25°C to +75°C
- Voltage: 25.5 to 35.5 V DC (mains-powered panel); 21 to 26 V DC (battery-powered panel)
- Current: quiescent 144 µA; alarm high 11.0 mA, low 3.0 mA
- Loading (Pro² panel): high 11 DLU; low 3 DLU (maximum 160 DLU per zone)
- IP rating: IP65 + IP33C
- Flammability: UL94-V2
- Compatibility: Twinflex V3, Pro and Pro² panels
