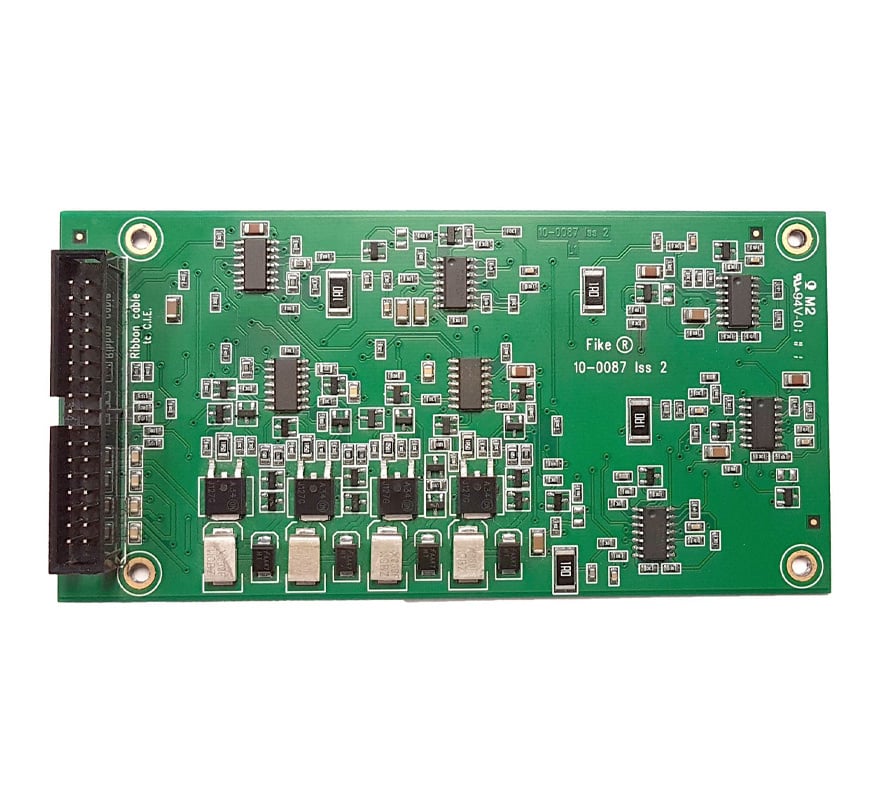

Fike TwinflexPro² 4 Zone Expansion Card (505-0006)

The Fike 505-0006 expansion card converts a 4-zone TwinflexPro² (or TwinflexPro) control panel into an 8-zone panel by adding four more Twinflex 2-wire zones.

It fits inside the panel and connects to the main CIE board with a ribbon cable. For conventional zones instead, Fike offers the separate 505-0007 conventional expansion card.

Key features

• Adds 4 Twinflex zones (zones 5 to 8) to a 4-zone panel
• Interface ribbon cable and mounting screws included when bought separately
• Field wiring for the new zones connects to the terminals on the panel CIE, not the card
• Panel detects the card automatically on power-up; unused zones are switched off in the engineer menu

Technical specifications

• Part number: 505-0006
• Compatible panel: 4-zone TwinflexPro² / TwinflexPro (505-0004); not compatible with the 2-zone panel or earlier Twinflex / Twinflex Checkpoint Plus panels
• Additional zones: 4 (Twinflex 2-wire)
• Fixing: 4 x M3 x 6 screws to the panel base

What's in the box

• Expansion card PCB
• Ribbon cable assembly
• 4 x M3 x 6 fixing screws
