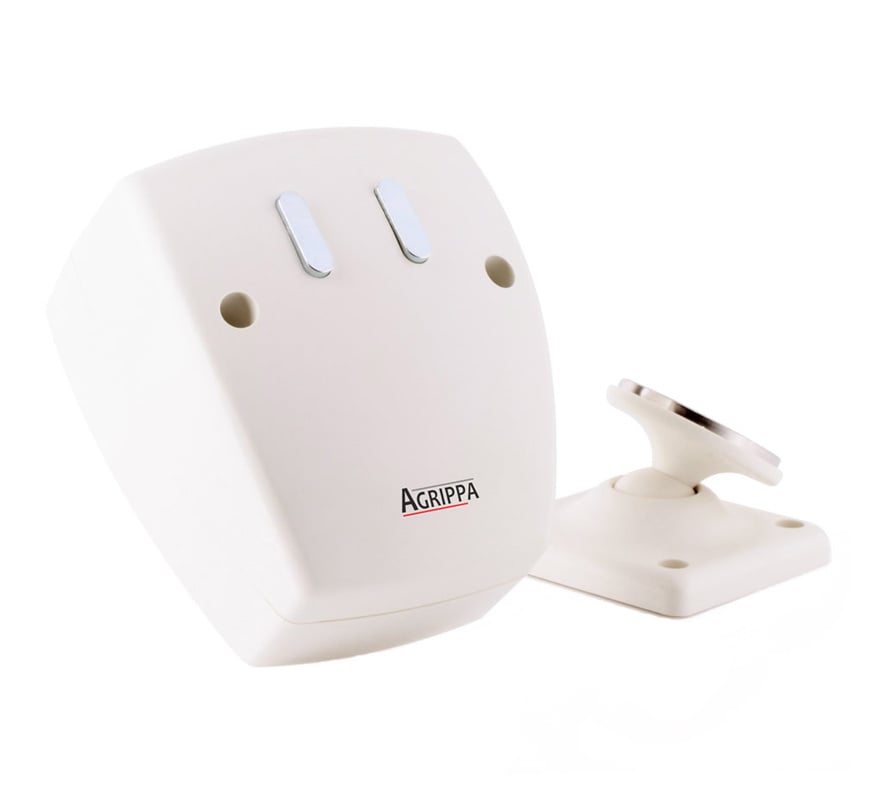

The Geofire Agrippa sound-activated fire door holder (3-80-0060, white finish) is a battery-powered magnetic device used to legally hold open internal fire doors, with no wiring to the fire alarm system. The holder is fitted to the wall with a keeper plate on the top of the door (or can be floor mounted with the optional bracket). When it hears the fire alarm, it releases the door so that the door closer shuts it, helping to prevent the spread of smoke and flames.
Its "listen and learn" technology records the specific sound of the building's fire alarm, so doors close on hearing that sound rather than other loud noises. As with all sound-activated devices, it may be triggered in an extremely noisy environment, where Geofire recommends its Salamander radio-controlled system instead.
Key features
- Dual mode: ready to protect straight from the box, and ready to learn the sound of your fire alarm
- Wire-free installation in around 10 minutes
- Red button for manual door release
- LED display screen, low battery warning and daily timed release to close all doors at the end of the day
- Fails safe: will not hold the door open if the batteries run out
- Recognised by UK Fire and Rescue Services and the London Fire Brigade; suitable for installation to BS 7273-4 standard actuation (Category B)
- Conforms to BS EN 1155, CE marked under the Construction Products Regulation and EMC approved
- Not suitable for voice evacuation systems or domestic smoke alarm sounders
- 12 month manufacturer's warranty
Technical specifications
-
Part number: 3-80-0060
-
Finish: White
-
Holding force: 200N
-
Door size: Up to power size 5
-
Default activation setting: 70dB(A), 1.2-3.0kHz
-
Preferred alarm sounder: Continuous tone
-
Dimensions: 118 x 102 x 66mm (L x W x D)
-
Batteries: 2 x C cell alkaline (supplied)
