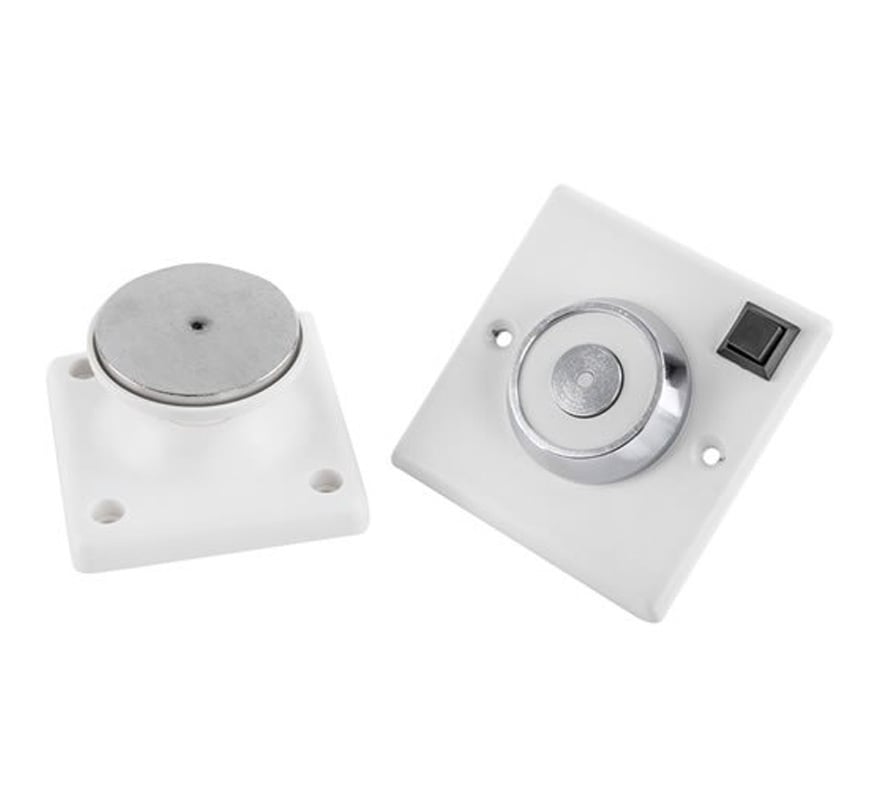

The Geofire Conquest (3-59-0364) is a 24V DC wall-mounted electromagnetic fire door holder for flush mounting. The Conquest magnet is built on a standard electrical back box. It holds fire doors open for easy access and releases them to close when the fire alarm system cuts power to the holder, allowing the door's own closer to shut it. It is suited to public access areas such as hospitals, offices, hotels, airports and care homes.
Key features
- Works with any suitable fire alarm system
- 200N holding force; spring-loaded pin ensures zero residual force
- Integral release button
- Built on a standard electrical back box for flush mounting
- Internal diodes dissipate back EMF on switch-off, reducing wear at the control unit
- Supplied with an adjustable keeper plate and installation instructions
- Type tested to EN 1155 and CE marked under the Construction Products Regulation
Technical specifications
- Part number: 3-59-0364
- Voltage: 24V DC
- Holding force: 200N (+20%)
- Power rating: 1.15W
- Residual holding force: zero
- Ambient temperature: 0°C to 40°C
- Casing: steel
- Door power rating: 3 to 6
- Warranty: 12 months
