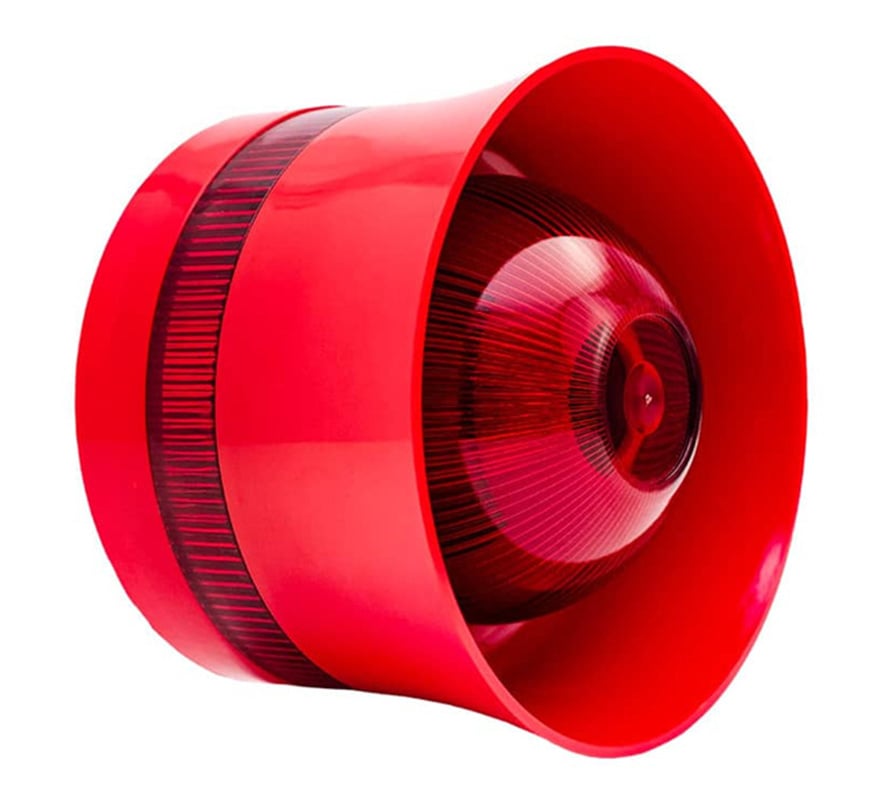

The Global Fire Equipment VALKYRIE ASB is a low-power addressable wall-mounted sounder beacon, giving an audible and a visual alarm. It is certified to EN 54-3. This listing is the red version (VALKYRIE-ASB).
It is used on the loop of Global Fire Equipment analogue addressable fire alarm systems. When individual address reporting is not needed it can be set as a shadow device, which does not report back to the panel.
Key features
- Combined sounder and beacon in one wall-mounted unit
- Up to 32 individually addressed sounders per loop, using addresses 94 to 125
- Address set with switches 1 to 5 of the 8-way DIL switch
- Four tones, selected with DIL switches 6 and 7
- Can be set as a shadow sounder with no address of its own, freeing addresses for detectors (shadow devices are not monitored and draw 10 mA in alarm)
- Low power consumption
- Wall mounted, red finish
Technical specifications
- Supply voltage: loop powered, 20 V to 30 V DC
- Quiescent loop current: 550 µA max. (with isolator)
- Current (sounder/beacon active): 10 mA - 280 mW at 28 V DC, including isolator
- Maximum sounder output: 100 dB at 1 m (30 V DC)
- Cable size: 0.5 to 2.5 mm²
- Reset/start-up time: 20 seconds max.
- Protection: IP21C, Type A indoor use
- Case material: ABS and PC
- Operating temperature: -10°C to 55°C; humidity 95% RH non-condensing
- Dimensions: 110 (D) x 85 (H) mm including base
- Weight: 254 g including base
- Certification: EN 54-3 (1328-CPR-0286)
