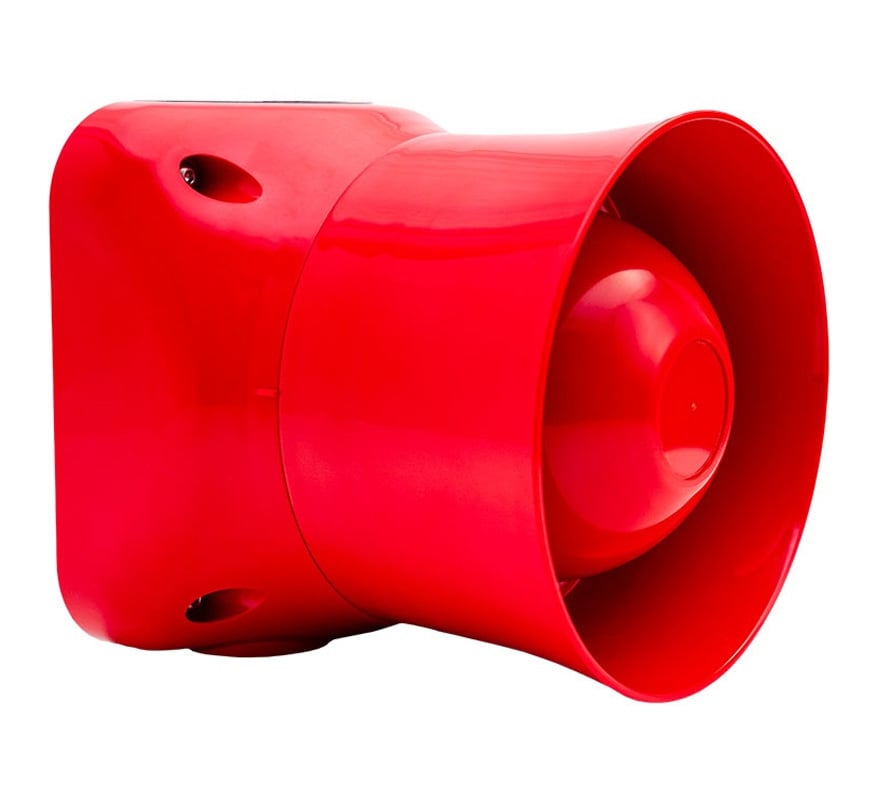

The Global Fire Equipment VALKYRIE ASI IP65 is a low-power addressable wall-mounted sounder with a built-in loop isolator, in red, designed for outdoor use.
It is used on the loop of Global Fire Equipment analogue addressable fire alarm systems. When individual address reporting is not needed it can be set as a shadow device, which does not report back to the panel.
Key features
- Built-in loop isolator
- Designed for outdoor use: IP65, Type B
- Up to 32 individually addressed sounders per loop, using addresses 94 to 125
- Address set with switches 1 to 5 of the 8-way DIL switch
- Four tones, selected with DIL switches 6 and 7
- Can be set as a shadow sounder with no address of its own (shadow devices are not monitored and draw 10 mA in alarm)
- Red finish
Technical specifications
- Supply voltage: loop powered, 20 V to 30 V DC
- Quiescent loop current: 550 µA max. (with isolator)
- Current (sounder/beacon active): 10 mA - 280 mW at 28 V DC, including isolator
- Maximum sounder output: 100 dB at 1 m (30 V DC)
- Reset/start-up time: 20 seconds max.
- Protection: IP65, Type B outdoor use
- Cable size: 0.5 to 2.5 mm²
- Case material: ABS and PC
- Operating temperature: -25°C to 70°C; humidity 95% RH non-condensing
- Dimensions: 112 (D) x 110 (H) mm including base
- Weight: 315 g including base
- Certification: 1328-CPR-0299
- Colour: red
