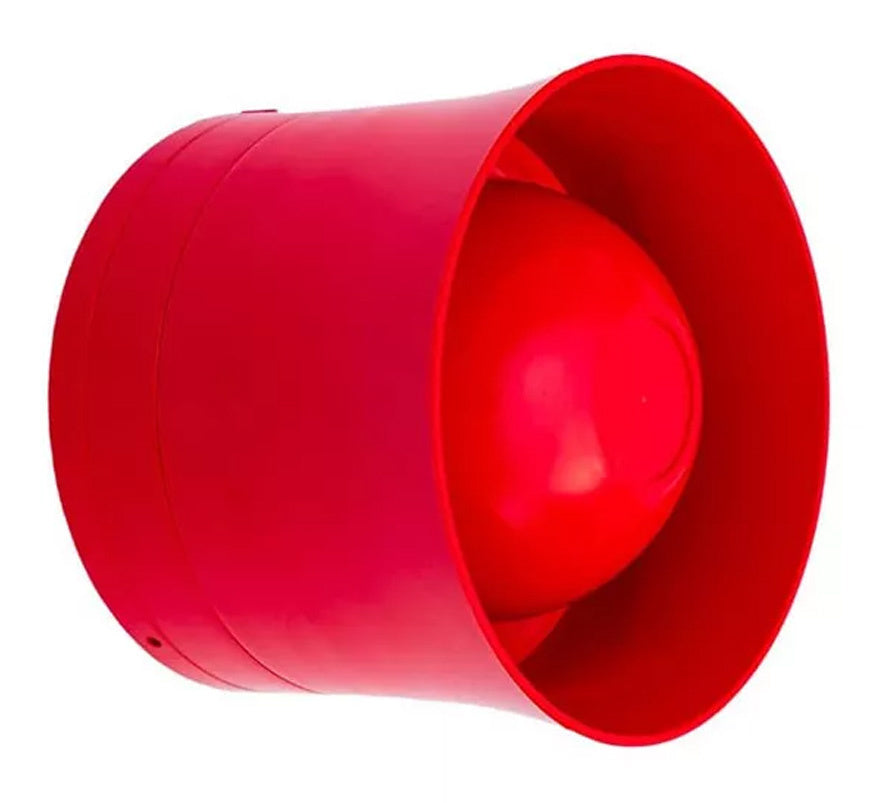

The Global Fire Equipment VALKYRIE CS is a low-power conventional wall-mounted sounder in red. It is used on the sounder circuits of conventional fire alarm panels, and GFE also offers it in white and as the CSB sounder beacon.
Key features
- Low power consumption: 10 mA when active
- Four tones, selected with DIL switches 1 and 2
- Separate negative supply connections for continuous and pulsing outputs, so alert and evacuate signals can sound differently
- Wall mounted, red finish
Technical specifications
- Supply voltage: 20 V to 30 V DC
- Current (active): 10 mA - 280 mW at 28 V DC
- Maximum sounder output: 97.5 dB at 1 m (30 V DC)
- Cable size: 0.5 to 2.5 mm²
- Reset/start-up time: 20 seconds max.
- Protection: Type A indoor use, IP21C
- Case material: ABS and PC, flame retardant
- Operating temperature: -10°C to 55°C; humidity 95% RH non-condensing
- Dimensions: 110 (D) x 85 (H) mm including base
- Weight: 254 g including base
- Certification: 1328-CPR-0287
