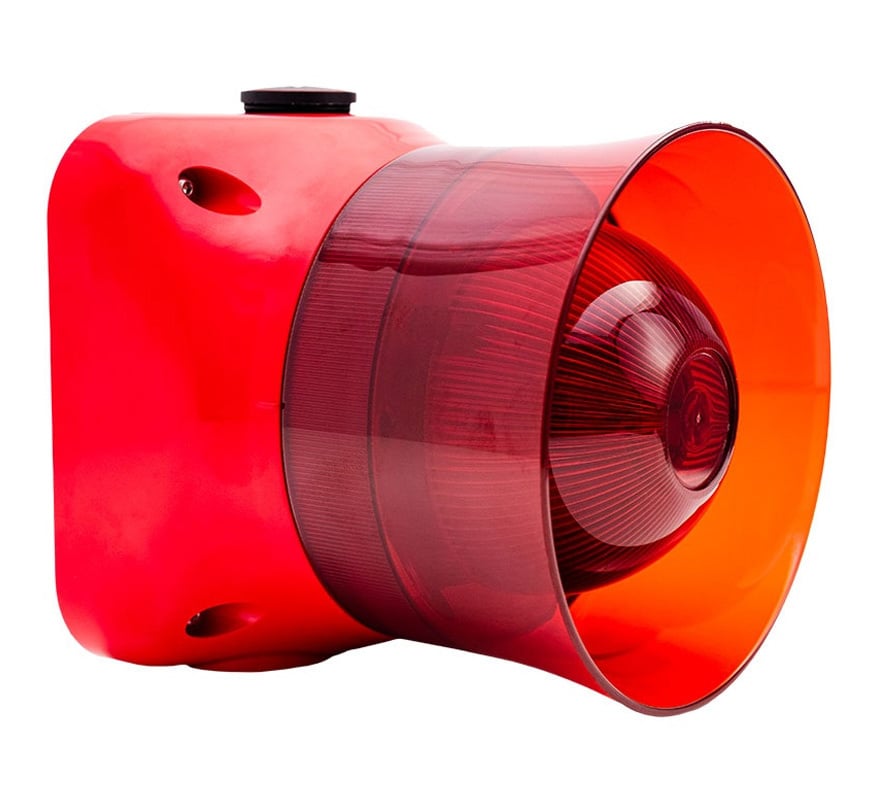

The Global Fire Equipment VALKYRIE ASBI IP65 is a low-power addressable wall-mounted sounder beacon with a built-in loop isolator, in red, designed for outdoor use. It gives both an audible and a visual alarm.
It is used on the loop of Global Fire Equipment analogue addressable fire alarm systems. When individual address reporting is not needed it can be set as a shadow device, which does not report back to the panel.
Key features
- Combined sounder and beacon
- Built-in loop isolator
- Designed for outdoor use: IP65, Type B
- Up to 32 individually addressed sounders per loop, using addresses 94 to 125
- Address set with switches 1 to 5 of the 8-way DIL switch
- Four tones, selected with DIL switches 6 and 7
- Can be set as a shadow sounder with no address of its own (shadow devices are not monitored and draw 10 mA in alarm)
- Red finish
Technical specifications
- Supply voltage: loop powered, 20 V to 30 V DC
- Quiescent loop current: 550 µA max. (with isolator)
- Current (sounder/beacon active): 10 mA - 280 mW at 28 V DC, including isolator
- Maximum sounder output: 100 dB at 1 m (30 V DC)
- Reset/start-up time: 20 seconds max.
- Protection: IP65, Type B outdoor use
- Cable size: 0.5 to 2.5 mm²
- Case material: ABS and PC
- Operating temperature: -25°C to 70°C; humidity 95% RH non-condensing
- Dimensions: 112 (D) x 110 (H) mm including base
- Weight: 315 g including base
- Certification: 1328-CPR-0299
- Colour: red
