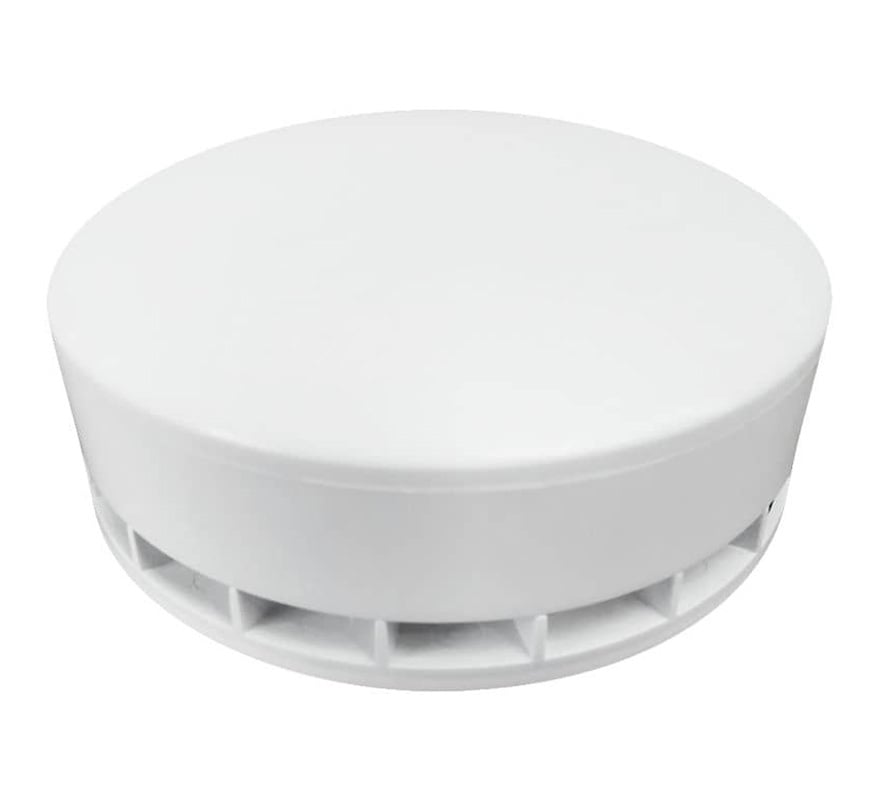

Global Fire VULCAN 2 VOX Conventional Base Voice Sounder (White) (VOX-C-VULCAN2-S)

The Global Fire Equipment VULCAN 2 VOX C is a conventional voice sounder. This listing is the white voice base sounder (VOX-C-VULCAN2-S), which GFE lists as the VULCAN 2 VOX CS.

It can broadcast up to two different pre-loaded messages, Fire and Alert, and follows the sounder programming of the panel. Messages are loaded from GFE's own recording PC software over a standard USB interface. It works with most conventional fire alarm panels.

Key features

• Two messages (Fire and Alert) that follow the panel's sounder programming
• Multi-language messages
• Messages programmed via USB using dedicated GFE software
• Synchronisation for fast activation
• Up to 92 dBA voice output
• Compatible with most conventional panels

Technical specifications

• Supply voltage: 20 V to 30 V DC
• Current (active): 28 mA average / 65 mA peak at 24 V DC
• Output at 1 m: tone 88 dBA; voice message 92 dBA
• Audio memory: 4 minutes (decoded audio), up to 16 minutes (encoded audio)
• Max. cable size: 2.5 mm²
• Operating temperature: -10°C to 55°C
• Humidity: 95% RH non-condensing
• Protection: IP21C, Type A indoor use
• Case material: ABS with transparent PC
• Dimensions: 100 (D) x 29 (H) mm
• Weight: 127 g (149 g with lid)
