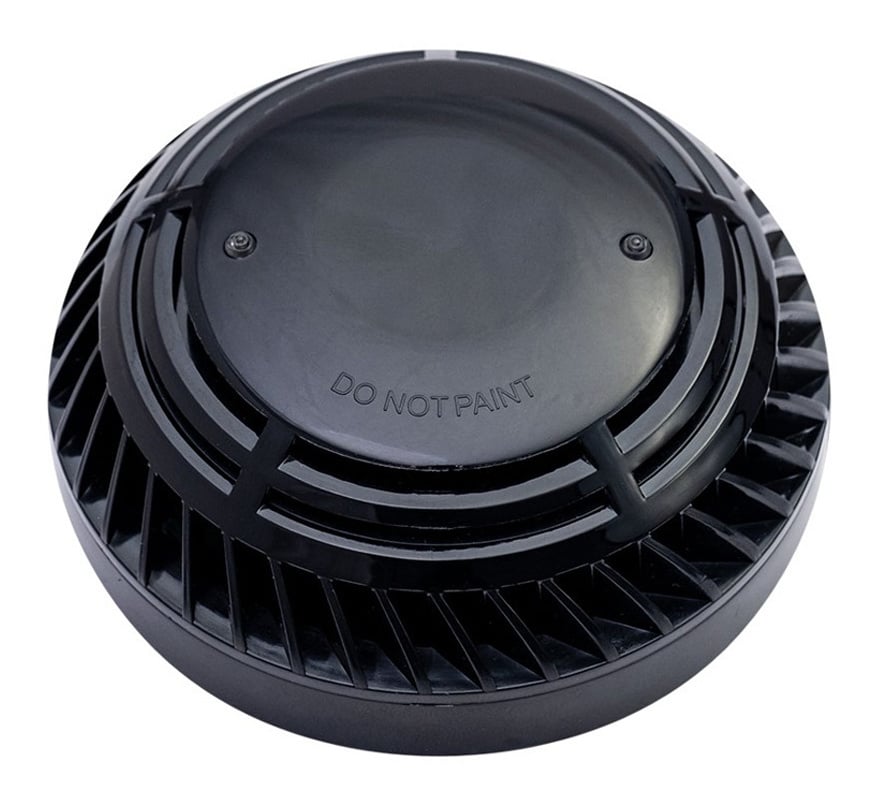

The Global Fire Equipment ZEOS-AD-H is an analogue addressable heat detector, supplied here in black (ZEOS-AD-HBLK). It is certified to EN 54-5.
The ZEOS-AD series is designed to work fully with GFE addressable fire alarm control panels: JUNIOR, JUNO NET and the Chameleon range (GEKKO, OCTO+ and G-One).
Key features
- Addressable heat detection
- Heat alarm set points: 55°C, 65°C (default), 75°C or 85°C
- Dual LEDs for 360° visibility
- Advanced detection and communication algorithms
- Low-profile housing with SMD electronics
- Black housing, which GFE lists as an alternative to white
Technical specifications
- Supply voltage: loop powered, 17 to 30 V DC
- Quiescent/surge current: 450 µA max.
- Alarm current: 4 mA (alarm LED lit)
- Cable size: 0.5 to 2.5 mm²
- Reset/start-up time: 20 seconds max.
- Ingress protection: IP20; case material ABS
- Operating temperature: 0°C to 50°C normal; -10°C to 85°C transient
- Humidity: 95% RH non-condensing
- Dimensions: 100 (D) x 50 (H) mm with base
- Weight: 92 g without base, 144 g with base
- Certification: EN 54-5 (ZEOS-AD-H 1328-CPR-0520)
