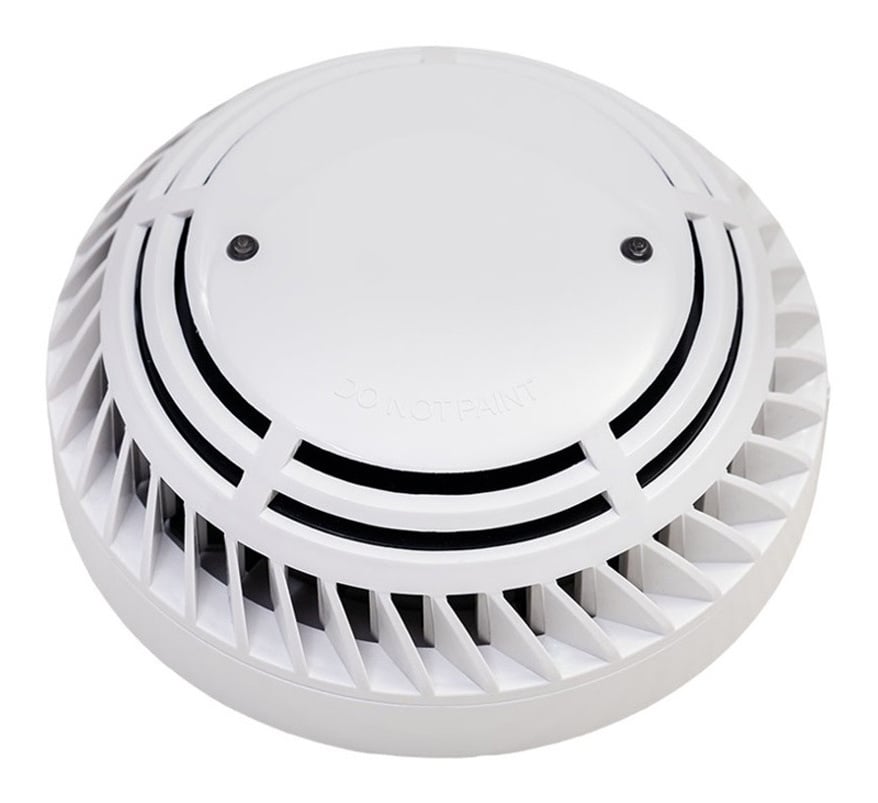

Global Fire ZEOS Addressable Multisensor Detector (ZEOS-AD-SHI)

The Global Fire Equipment ZEOS-AD-SHI is an analogue addressable combined smoke and heat (multisensor) detector with a built-in short-circuit loop isolator. It is certified to EN 54-5 and EN 54-7.

The ZEOS-AD series is designed to work fully with GFE addressable fire alarm control panels: JUNIOR, JUNO NET and the Chameleon range (GEKKO, OCTO+ and G-One).

Key features

• Combined smoke and heat detection with a built-in short-circuit loop isolator
• Multisensor modes: heat, smoke or combined (default)
• Smoke sensitivity settings: low, normal (default) and high
• Heat alarm set points: 55°C, 65°C (default), 75°C or 85°C
• Dual LEDs for 360° visibility
• Advanced detection and communication algorithms
• Low-profile housing

Technical specifications

• Supply voltage: loop powered, 17 to 30 V DC
• Quiescent/surge current: 450 µA max.
• Alarm current: 4 mA (alarm LED lit)
• Cable size: 0.5 to 2.5 mm²
• Reset/start-up time: 20 seconds max.
• Ingress protection: IP20; case material ABS
• Operating temperature: 0°C to 50°C normal; -10°C to 85°C transient
• Humidity: 95% RH non-condensing
• Dimensions: 100 (D) x 50 (H) mm with base
• Weight: 92 g without base, 144 g with base
• Certification: EN 54-5 and EN 54-7 (ZEOS-AD-SHI 1328-CPR-0492)
