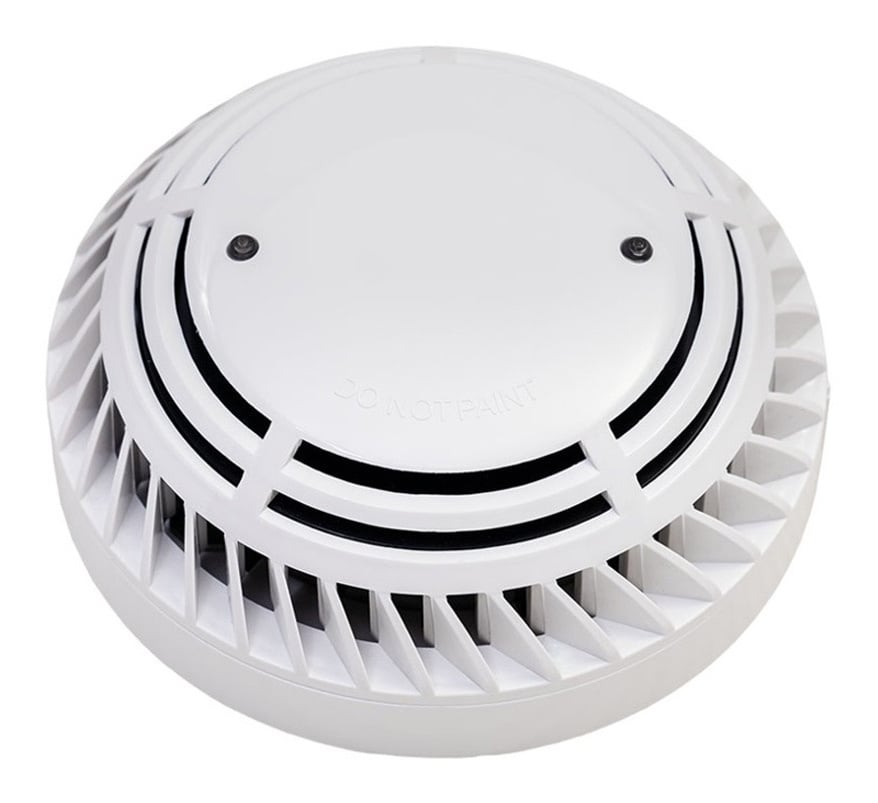

Global Fire ZEOS Conventional Optical Smoke Detector (ZEOS-C-S)

The Global Fire Equipment ZEOS-C-S is a conventional optical smoke detector from the ZEOS-C series, for use on GFE conventional fire alarm detection zones. The series is certified to EN 54-5 and EN 54-7 and also includes heat and combined smoke/heat models.

ZEOS-C detectors are designed only for GFE conventional detection zones. These are the ORION, ORION MINI, ORION EX and ORION-PLUS conventional panels and the QUAD-ZMU and ZMU addressable zone monitoring units.

Key features

• Conventional optical smoke detector from the ZEOS-C range
• Low quiescent current of 33 µA
• Alarm LEDs
• Low-profile white ABS housing
• Fits the ZEOS detector base

Technical specifications

• Supply voltage: 10 to 30 V DC
• Quiescent current: 33 µA (smoke)
• Alarm current: 24 mA (alarm LEDs)
• Sensitivity: to EN 54-5 and/or EN 54-7
• Cable size: 0.5 to 2.5 mm²
• Reset/start-up time: 20 seconds max.
• Colour / case material: white / ABS
• Operating temperature: 0°C to 50°C normal; -10°C to 85°C transient
• Humidity: 95% RH non-condensing
• Dimensions: 100 (D) x 50 (H) mm
• Weight: 144 g including base
• Compatibility: ORION, ORION MINI, ORION EX, ORION-PLUS, QUAD-ZMU and ZMU
