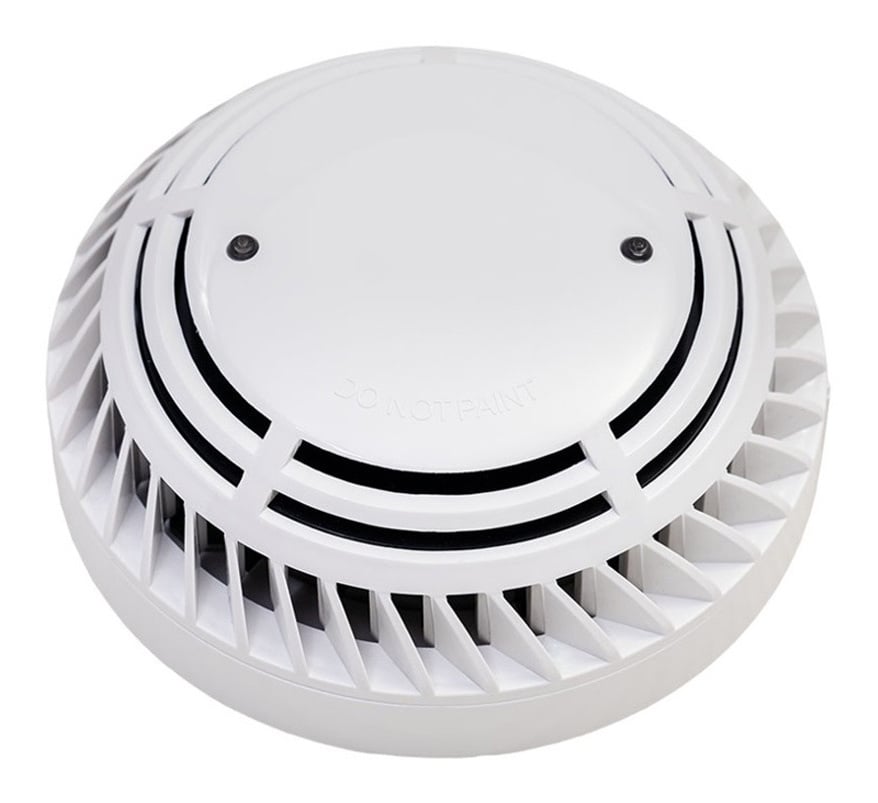

The Global Fire Equipment ZEOS-C-SH is a conventional combined smoke and heat (multisensor) fire detector from the ZEOS-C series. The series is certified to EN 54-5 and EN 54-7.
ZEOS-C detectors are designed only for GFE conventional detection zones. These are the ORION, ORION MINI, ORION EX and ORION-PLUS conventional panels and the QUAD-ZMU and ZMU addressable zone monitoring units.
Key features
- Combined smoke and heat sensing in one detector head
- Certified to EN 54-5 and EN 54-7
- Very low quiescent current of 35 µA (smoke and heat version)
- Alarm LEDs
- White ABS housing
Technical specifications
- Supply voltage: 10 to 30 V DC
- Quiescent current: 35 µA (smoke and heat)
- Alarm current: 24 mA (alarm LEDs)
- Cable size: 0.5 to 2.5 mm²
- Reset/start-up time: 20 seconds max.
- Operating temperature: 0°C to 50°C normal; -10°C to 85°C transient
- Humidity: 95% RH non-condensing
- Dimensions: 100 (D) x 50 (H) mm
- Weight: 144 g including base
- Compatibility: ORION, ORION MINI, ORION EX, ORION-PLUS, QUAD-ZMU and ZMU
