Key featuresFull details
- Replaces the traditional end-of-line resistor
- Can be used as a detector base, saving installation cost
- Can be used alone with a cover
- Same terminal layout as the DB-01 detector base
- All other bases in the zone should be diode bases (DB-01D)
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
GST Active EOL Unit for DC Series Devices (DP-9907)
£5.90
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Frequently bought together
GST
GST Anti-tamper Transparent Manual Call Point Protection Cover for DI-9204E, DC-9204E (D-92FC)
Sale price£2.50
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
GST
GST Conventional 16 Zone Fire Alarm Panel (GST116A)
Sale price£273.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

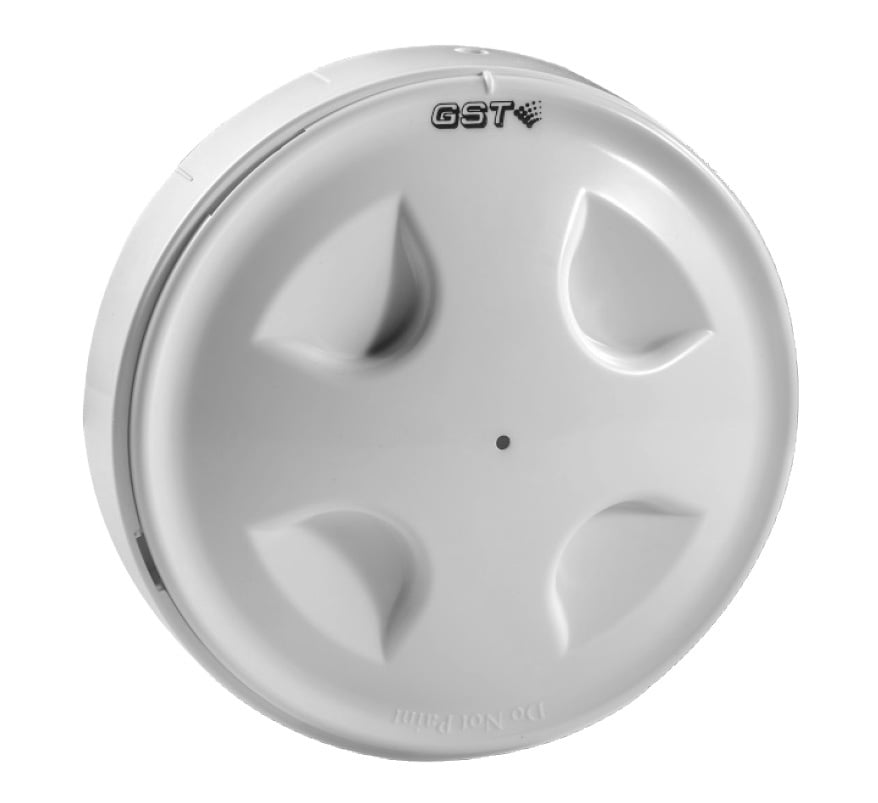

The GST DP-9907 is an active end-of-line unit (AEOL) for conventional zones on GST conventional panels and addressable zone monitor units. It replaces the traditional end-of-line resistor, so that removing a detector from its base does not leave the devices after it without monitoring. It fits in place of a standard detector base.
Key features
- Replaces the traditional end-of-line resistor
- Can be used as a detector base, saving installation cost
- Can be used alone with a cover
- Same terminal layout as the DB-01 detector base
- All other bases in the zone should be diode bases (DB-01D)
Technical specifications
- Part number: DP-9907 (product no. 10103044)
- Operating voltage: 24V DC
- Operating current: 5mA or less
- Wiring: 2-core, polarised
- Ingress protection: IP33
- Operating temperature: -10°C to +50°C
- Relative humidity: up to 95%, non-condensing
- Enclosure: white ABS (RAL 9016)
- Dimensions: 100mm diameter x 39mm
- Weight: approx. 105g
- Compatible products: GST1XXA conventional panels, I-9319 zone monitor module, DC-910xE conventional detectors, DB-01D diode base
Datasheet
GST Active EOL Unit for DC Series Devices (DP-9907) Need the datasheet? Our team will email it to you. Request datasheet
GST Active EOL Unit for DC Series Devices (DP-9907)
£5.90
