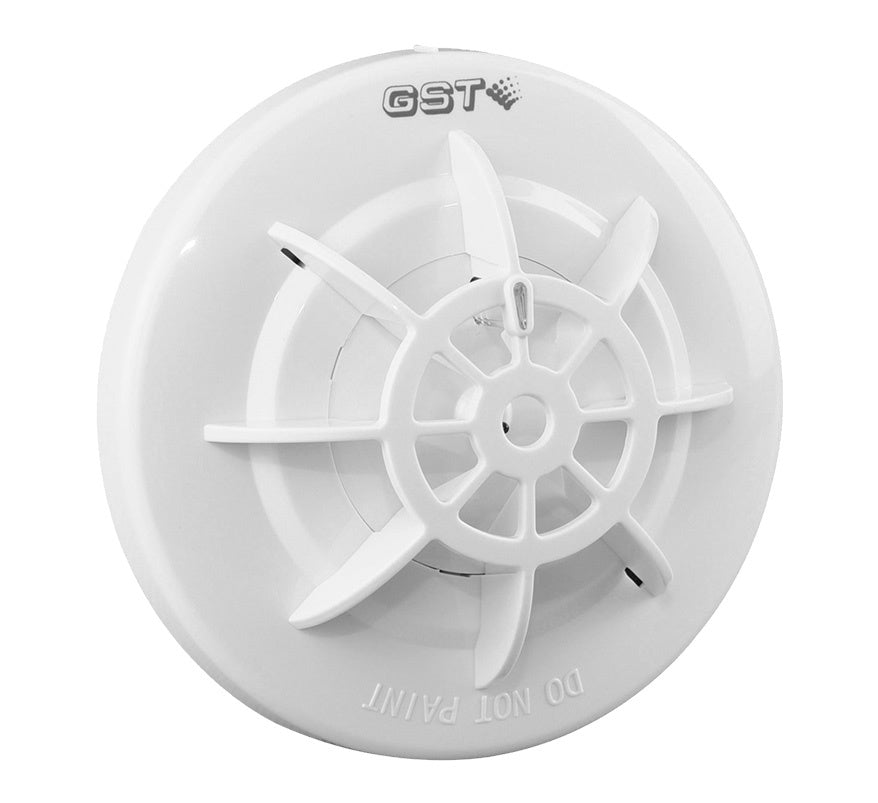

GST Conventional Heat Detector (DC-9103E)
£8.50
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 3 programmable operating classes: A1R, A2S and BS
- Configured with the GST P-9910B programmer
- Self-diagnostic with local test by reed switch
- 360 degree LED visibility, polling LED can be switched off
- Remote indicator output
- Fits the DB-01 standard base, or DB-01D diode base where BS 5839 head-removal operation is needed
Frequently bought together
GST
GST Conventional Optical/Heat Multisensor Detector (DC-9101E)
Sale price£14.00
Out of stock. Lead time 2 to 6 weeks, estimate only
GST
GST Conventional Point Detector Base with Diode (DB-01D)
Sale price£6.10
Out of stock. Lead time 2 to 6 weeks, estimate only
GST
GST Conventional Sounder Beacon (C-9403)
Sale price£24.40
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details
The GST DC-9103E is a configurable conventional heat detector offering rate-of-rise or fixed temperature detection. It connects to GST A series conventional panels or the GST I-9319 zone monitor and is approved to EN 54-5.
Key features
- 3 programmable operating classes: A1R, A2S and BS
- Configured with the GST P-9910B programmer
- Self-diagnostic with local test by reed switch
- 360 degree LED visibility, polling LED can be switched off
- Remote indicator output
- Fits the DB-01 standard base, or DB-01D diode base where BS 5839 head-removal operation is needed
Specification
| Product code | DC-9103E |
|---|---|
| Brand | GST |
| Operating voltage | 16 to 28VDC (24VDC typical) |
| Current | <60uA quiescent, 55mA alarm |
| IP rating | IP2X |
| Operating temperature | -10 to +65C |
| Dimensions | 100mm dia. x 54.5mm (with base) |
| Material / colour | ABS, white |
| Standards | EN 54-5, LPCB |
