GST Conventional 4 Zone Fire Alarm Panel (GST104A)
£134.15
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 4 detection zones and 4 sounder outputs
- Up to 15 conventional detectors per zone, with no more than 32 detectors and call points in total per zone
- Fire alarm and fault outputs for interfacing with other systems
- Integrated charger and battery management to EN 54-4
- Zones, sounder outputs and alarm output can be enabled or disabled
- Programmable zone-to-sounder interlinking, alert or evacuate tone, with or without delay
Frequently bought together
GST
GST Conventional Optical/Heat Multisensor Detector (DC-9101E)
Sale price£14.00
Out of stock. Lead time 2 to 6 weeks, estimate only
GST
GST Conventional Point Detector Base with Diode (DB-01D)
Sale price£6.10
Out of stock. Lead time 2 to 6 weeks, estimate only
Product details

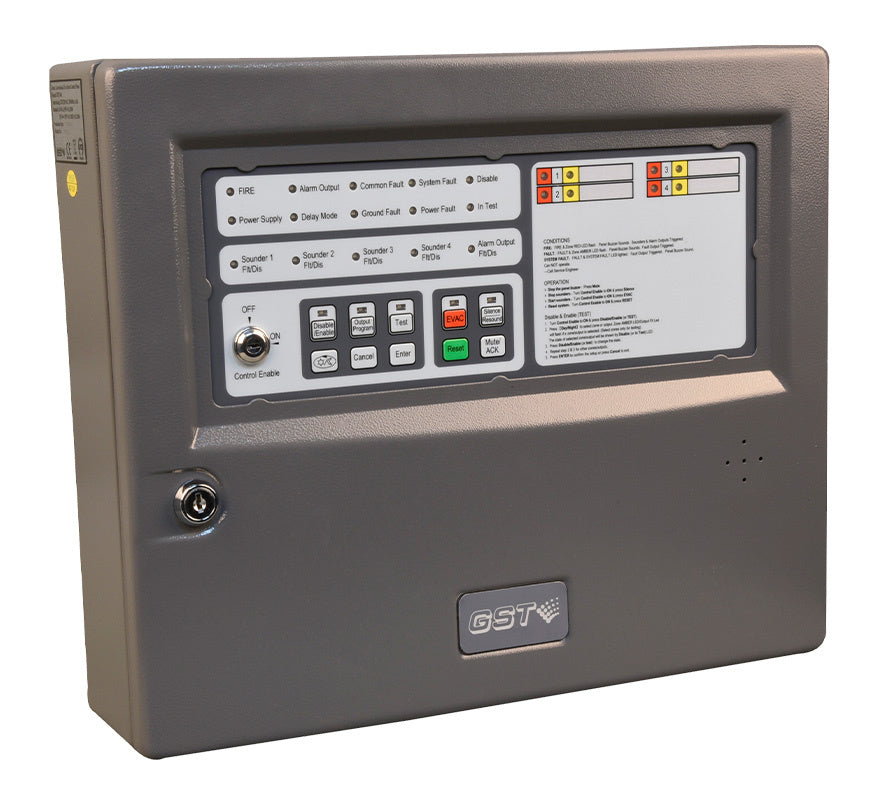

The GST104A is a 4 zone conventional fire alarm control panel from the GST A series, designed to EN 54-2 and EN 54-4. It works with GST conventional detectors, manual call points and sounders, with control and programming functions enabled by key switch.
Key features
- 4 detection zones and 4 sounder outputs
- Up to 15 conventional detectors per zone, with no more than 32 detectors and call points in total per zone
- Fire alarm and fault outputs for interfacing with other systems
- Integrated charger and battery management to EN 54-4
- Zones, sounder outputs and alarm output can be enabled or disabled
- Programmable zone-to-sounder interlinking, alert or evacuate tone, with or without delay
- Day/night mode and three access levels controlled by key switch
- Supports 4.7K end-of-line resistor or GST active end-of-line unit
Specification
| Product code | GST104A |
|---|---|
| Brand | GST |
| Detection zones | 4 |
| Sounder outputs | 4 (300mA each in active mode, or relay NO/NC 1A/24VDC) |
| Mains supply | 220/230VAC +/-15%, 50/60Hz |
| Output voltage | 20VDC to 28VDC |
| Auxiliary output | 20VDC to 28VDC, 500mA |
| Standby batteries | 7Ah, 24VDC |
| Standards | EN 54-2, EN 54-4 |
| Approval | LPCB |
| Operating temperature | 0 to 40C, up to 95% RH |
| Dimensions | 380 x 320 x 103mm |
