Hochiki CWSB-E Conventional Wall Sounder VID Beacon - Red Case (non EN54-23 compliant)
SKU: CWSB-EBrand: Hochiki
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 1 | Same day dispatch |
| UK Hub | 0 | None at UK Hub |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Hochiki CWSB-E Conventional Wall Sounder VID Beacon - Red Case (non EN54-23 compliant)
£57.65
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Robust design, easy to install
- Low current consumption
- Maximum 113 dB(A) at 1 m (tone 15)
- 32 user-selectable tones
- Three sound levels: low, medium and high
- High intensity LED beacon
Frequently bought together
Hochiki
Hochiki CWSB-E(WHT) Conventional Wall Sounder Beacon - White Case (non EN54-23 compliant)
Sale price£57.65
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CWST-WR-S5 Conventional VAD Beacon - White Case, Red LEDs
Sale price£44.90
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CWST-WW-S5 Conventional VAD Beacon - White Case, White LEDs
Sale price£62.15
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki CWST-WW-W5 Weatherproof Conventional VAD Beacon - White Case, White LEDs (IP65)
Sale price£64.75
Out of stock. Lead time 2 to 6 weeks, estimate only
Hochiki
Hochiki DCD-1E-IS(WHT) Intrinsically Safe Conventional Heat Detector - White Case
Sale price£54.75
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

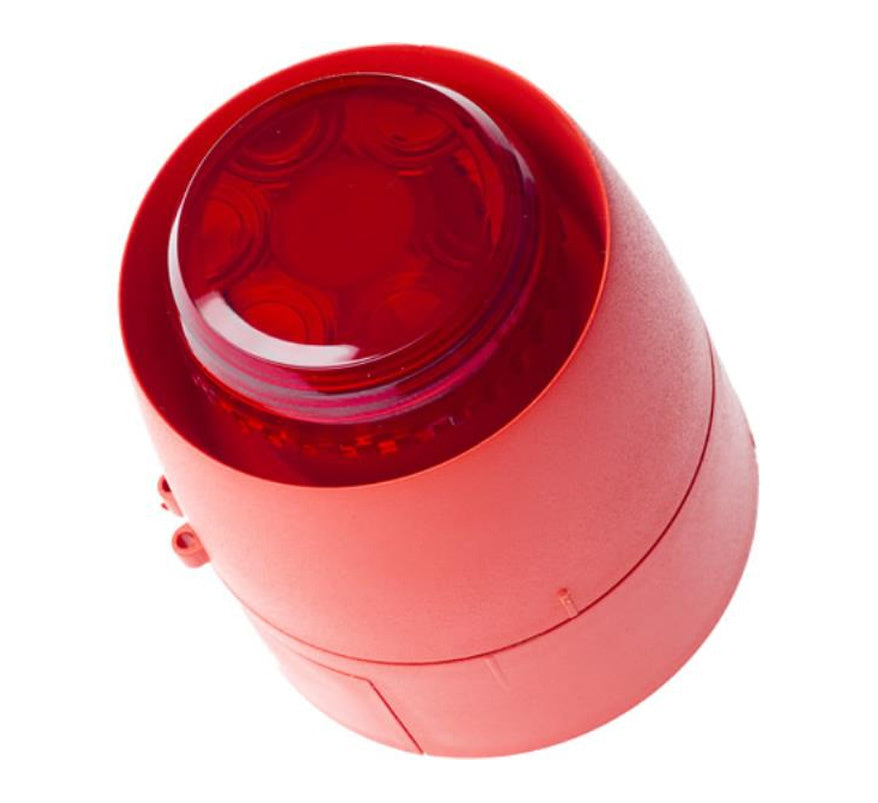

The Hochiki CWSB-E is a conventional wall sounder beacon in a red case for conventional fire alarm sounder circuits. Its electronic design gives very low current consumption while offering a range of tones and volumes, selected using the DIL switches on each unit. It uses high intensity LED technology and is supplied with its own base. This beacon is not EN 54-23 compliant.
Key features
- Robust design, easy to install
- Low current consumption
- Maximum 113 dB(A) at 1 m (tone 15)
- 32 user-selectable tones
- Three sound levels: low, medium and high
- High intensity LED beacon
- Supplied with its own base; shallow (IP43) or deep (IP65) base versions
- Not EN 54-23 compliant
Technical specifications
- Voltage range: 18-35 V DC
- Sound output at 1 m: low 88 dB(A); medium 103 dB(A); high 109 dB(A)
- Current at 24 V DC: low 11 mA or less; medium 19 mA or less; high 37 mA or less
- Number of tones: 32
- Operating frequency: 440-2900 Hz
- Ingress protection: IP43 (IP65 for deep base model)
- Operating temperature: -20°C to +70°C
- Colour: red
- Dimensions: 93.6 mm diameter x 86.6 mm high (shallow base); 93.0 mm diameter x 106.9 mm high (deep base)
- Weight: 110 g
