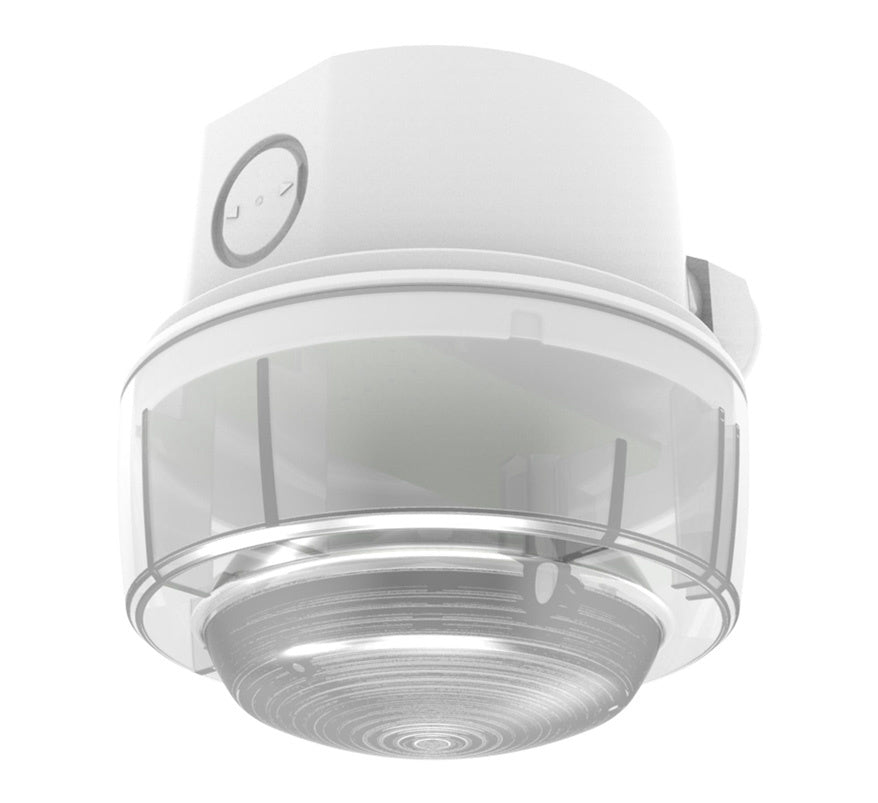

The Hochiki CWST-WW-W5 is a conventional visual alarm device (VAD) beacon with a white case and white LEDs, approved to EN 54-23 in both the C (ceiling) and W (wall) categories. High-output LEDs, advanced optics and an innovative lens design give omni-directional light coverage at low current draw, and the flash synchronises automatically on power-up. This is the IP65 deep-base (weatherproof) version, for use on conventional fire alarm sounder circuits.
Key features
- Approved to EN 54-23, C and W categories
- Advanced optics for superior light coverage at low current draw
- Synchronised flash, automatically on power-up
- White light flash
- Soft-start feature reduces power surges during system start-up
- Available in low-profile and IP65 deep versions
Technical specifications
- Ordering code: CWST-WW-W5 (white case / white LED)
- Operating voltage (EN 54-23): 12-29 V DC
- Current consumption: 26 mA at 29 V DC
- Flash rate: 0.5 Hz
- Ingress protection: IP65
- Relative humidity: 93% ±3% non-condensing
- Operating temperature: -25 °C to +70 °C
- Lens / body material: PC / PC-ABS (clear lens)
- Weight: 171 g
- Dimensions: Ø100 x 97 mm (H)
- Maximum cable size: 2.5 mm²
- Wall mount (W class), white LEDs: W-2.4-9.0 (194 m³)
- Ceiling mount (C class), white LEDs: C-3-9.5 (213 m³), C-6-9.5 (425 m³), C-9-9.5 (638 m³)
