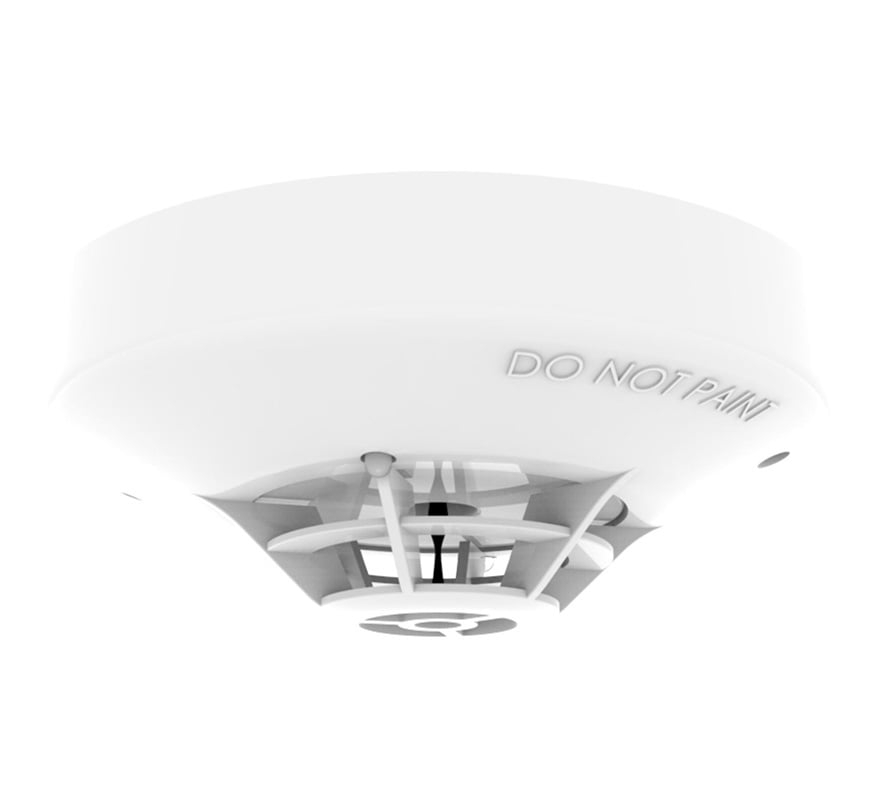

Hochiki DCD-AE3(WHT) Conventional Combined Heat Detector 60°C - White Case

The Hochiki DCD-AE3(WHT) is a conventional heat detector in a white case that combines rate of rise detection with a 60°C fixed temperature element. It uses a thermistor and linearising circuit to give an accurate linear response, and is ideal where medium ambient temperatures exist or where smoke detectors are unsuitable because of steam or cooking fumes, such as kitchens and drying rooms. It is supported on the majority of conventional systems and fits a range of Hochiki conventional bases.

Key features

• Electronic linear heat detection
• Rate of rise plus 60°C fixed temperature element
• Twin fire LEDs for 360° viewing
• Remote indicator output via third terminal
• Wide voltage range (9.5-30 V DC)
• Approved by LPCB and VdS

Technical specifications

• Operating voltage: 9.5-30 V DC
• Quiescent current: 35 µA
• Maximum alarm current (typical): 40 mA
• Remote indicator drive: 20 mA max. (9.5-14 mA typ.)
• Ingress protection: IP63
• Maximum humidity: 95% RH, non-condensing (at 40°C)
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +70°C
• Case: white polycarbonate
• Dimensions: 100 mm diameter x 38 mm high
• Weight: 76 g
• Compatible bases: YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA
• Base fixing centres: 48-74 mm
• Approvals: EN 54 class A1 and A1R; LPCB and VdS (G204044)
