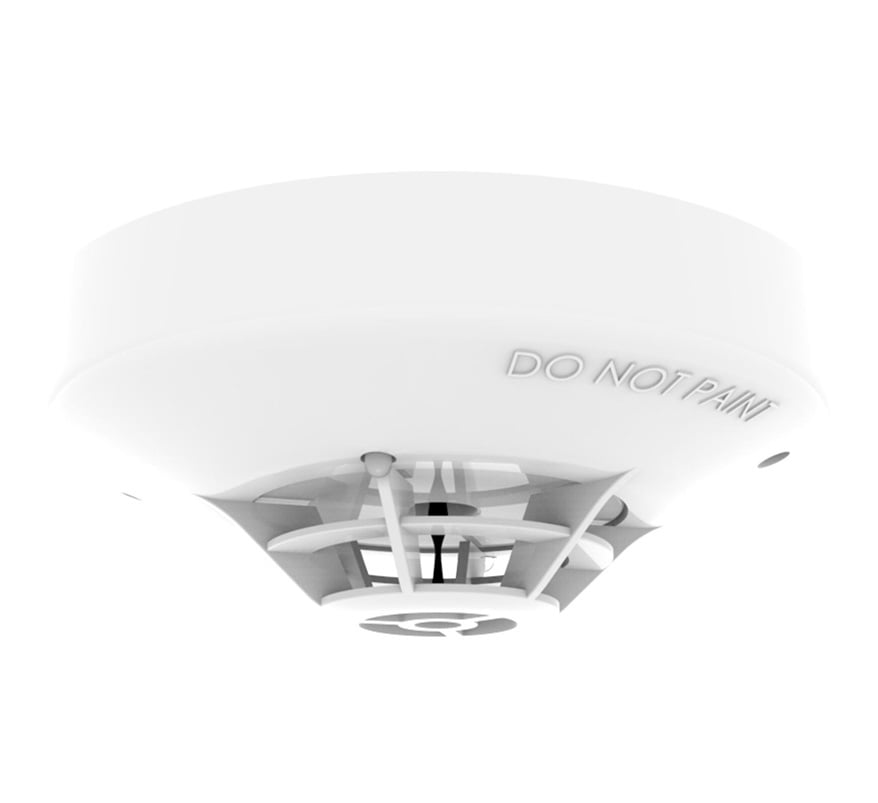

The Hochiki DCD-CE3(WHT) is a conventional heat detector in a white case that combines rate of rise detection with a 90 °C fixed temperature element. It uses a thermistor and linearising circuit to give an accurate linear response, and suits areas where medium ambient temperatures exist or where smoke detectors are unsuitable because of steam or cooking fumes, such as kitchens and drying rooms. It works on the majority of conventional fire alarm systems and fits the Hochiki CDX range of conventional bases; a third terminal provides a remote indicator output.
Key features
- Electronic linear heat detection
- Rate of rise plus 90 °C fixed temperature element
- Twin fire LEDs for 360° viewing
- Remote indicator output
- Wide voltage range (9.5-30 V DC)
- Approved by LPCB and VdS
Technical specifications
- Ordering code: DCD-CE3(WHT)
- Operating voltage: 9.5-30 V DC
- Quiescent current: 35 µA
- Maximum current in alarm (typical): 40 mA
- Remote indicator drive: 20 mA max. (9.5-14 mA typ.)
- Ingress protection: IP63
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Case: white polycarbonate
- Weight: 76 g
- Dimensions: Ø100 x 38 mm (H)
- Compatible bases: YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA
- Base fixing centres: 48-74 mm
- Approvals: EN 54-5:2017 category C and CR; LPCB and VdS (G204045, YBN-R/6SK base only)
