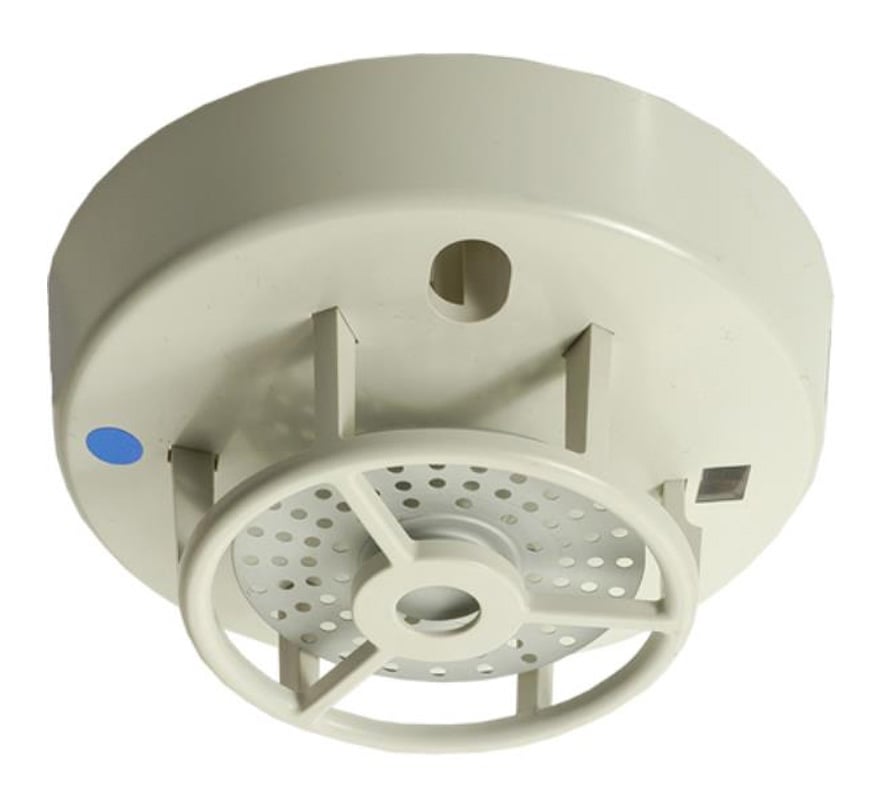

The Hochiki DFG-60BLKJ is a 60°C fixed temperature waterproof heat detector for conventional fire alarm zones, part of the Hochiki CDX conventional range. It uses a bi-metallic strip to sense temperature, so it draws minimal standby current and is highly reliable. Rated to IP67, it is particularly suited to areas with high condensation or that are hosed down, and it senses reliably whether mounted horizontally or vertically. No mounting base is needed: short flying leads connect directly to the conventional zone and a remote LED.
Key features
- Waterproof design rated to IP67
- 60°C fixed temperature operation using a bi-metallic strip
- No mounting base required - flying leads for zone and remote LED connection
- Minimal standby current
- Low profile shape
- Responds to both slow and fast increases in temperature
- Approved by LPCB and VdS to EN 54-5
Technical specifications
- Operating voltage: 15-30 V DC (nominal 24 V DC)
- Maximum current in alarm: 50 mA at 24 V DC
- Operating temperature: -10°C to +40°C
- Storage temperature: -30°C to +70°C
- Ingress protection: IP67
- Colour / case material: ivory / modified polycarbonate
- Dimensions: 98 mm diameter x 45 mm high
- Fixing centres: 70 mm
- Weight: 80 g
- Approvals: LPCB and VdS, EN 54-5
