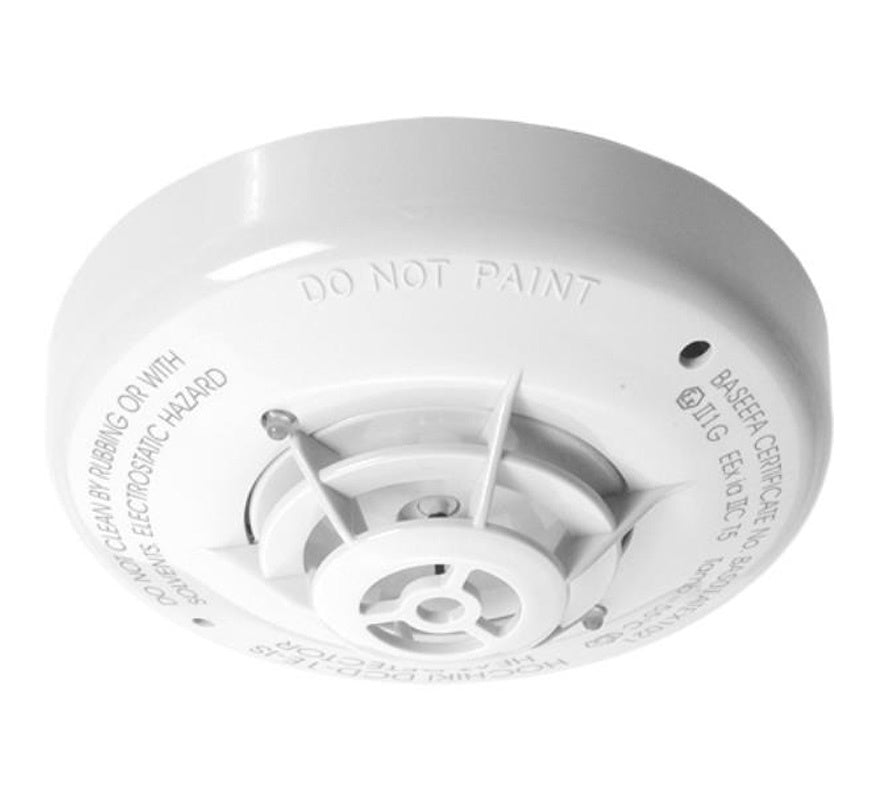

The Hochiki DCD-1E-IS(WHT) is an intrinsically safe conventional rate of rise heat detector with a 60 °C fixed temperature element, in a white case. It is designed for hazardous areas such as refineries, chemical plants and fuel stations, and has a remote indicator output.
Like all intrinsically safe equipment, it must be connected through a Zener barrier or galvanic isolator (such as the Hochiki Z787) to limit the energy entering the hazardous area. Hochiki allows up to 20 intrinsically safe detectors per zone.
Key features
- 60 °C fixed temperature element combined with rate of rise detection
- Twin fire LEDs allow 360° viewing
- Electronics-free mounting base
- Remote indicator output
- Suitable for installation in Category 1 areas (including all lower categories)
- Approved by LPCB, GL and to IECEx
Technical specifications
- Ordering code: DCD-1E-IS(WHT) (white)
- Operating voltage: 15 to 30 VDC
- Quiescent current (typical): 50 µA
- Maximum current in alarm: 50 mA
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Maximum humidity: 95% RH, non-condensing (at 40 °C)
- Ingress protection: IP63
- Case material: ABS
- Weight: 97 g
- Dimensions: Ø 100 x H 40 mm
- Compatible base: YBN-R/4(IS) (8 mm high)
- Base fixing centres: 48 to 74 mm
- ATEX classification: Ex ia IIC T5 Ga (-20 °C ≤ Ta ≤ +55 °C)
- Approvals: LPCB, Germanischer Lloyd
