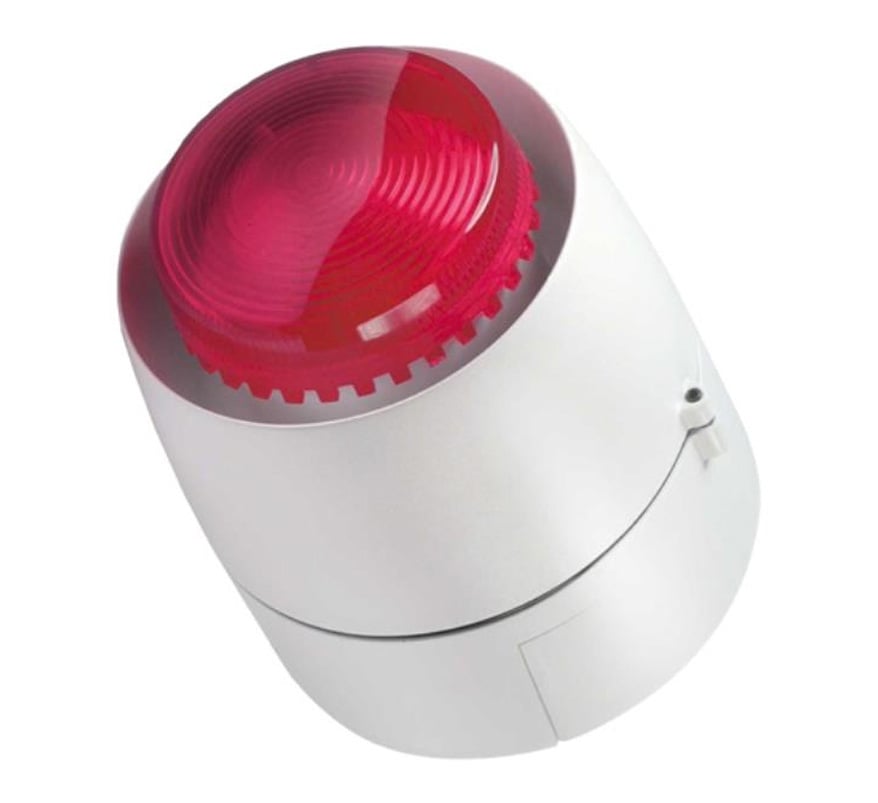

Hochiki CWSB-E(WHT) Conventional Wall Sounder Beacon - White Case (non EN54-23 compliant)

The Hochiki CWSB-E(WHT) is a conventional wall sounder beacon in a white case. Its electronic design gives very low current consumption while offering a choice of tones and volumes, set with DIL switches on each unit, and the beacon and sounder are fully synchronised. It is supplied with its own base, either shallow (IP21) or deep (IP33). The sounder is approved to EN 54-3; the beacon is not EN 54-23 compliant.

Key features

• Robust design, easy to install
• Low current consumption
• Maximum 113 dB(A) at 1 m (tone 15)
• 32 user-selectable tones and 3 volume settings
• High-intensity LED beacon, synchronised with the sounder
• Shallow or deep base available
• Sounder approved to EN 54-3

Technical specifications

• Ordering code: CWSB-E(WHT)
• Operating voltage: 21-28 V DC
• Sound output at 1 m, tone 1: 79.7 dB(A) low / 95.4 dB(A) medium / 99.1 dB(A) high
• Current consumption at 24 V DC: 10.8 mA low / 19.9 mA medium / 34.4 mA high
• Number of tones: 32
• Operating frequency: 440-2900 Hz
• Flash rate: c. 1 Hz
• Ingress protection: IP21 (IP33C with deep base)
• Operating temperature: -20 °C to +70 °C
• Colour: white
• Weight: 110 g
• Dimensions: Ø93.6 x 86.6 mm (H) shallow base; Ø93.0 x 106.9 mm (H) deep base
• Approvals: sounder approved to EN 54-3 by Intertek on tones 1, 8, 11, 25 and 27
