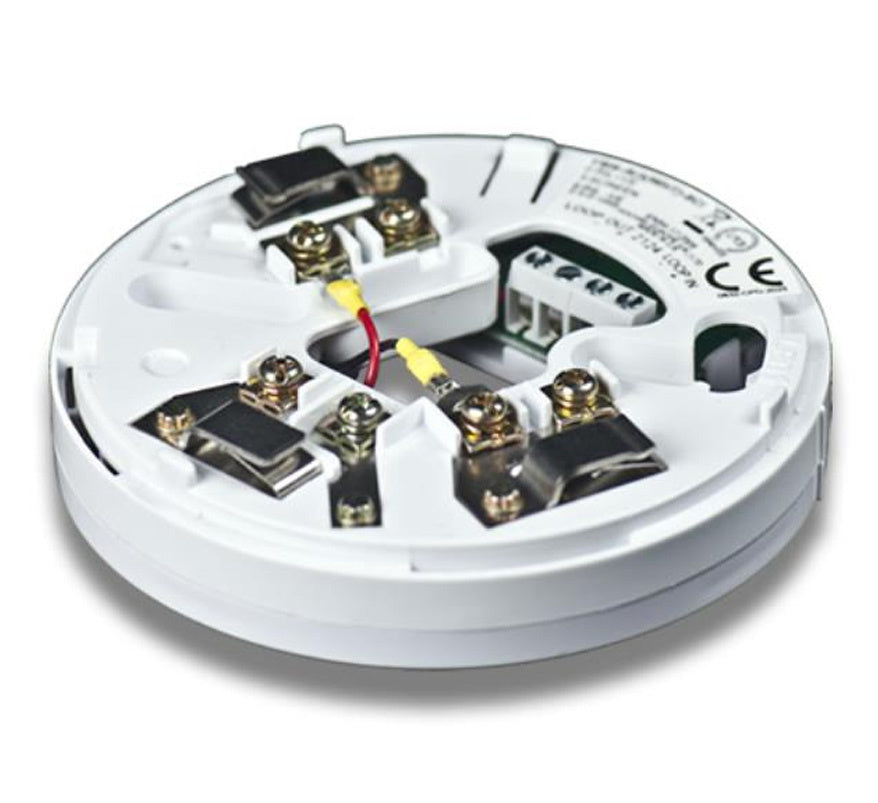

The Hochiki YBN-R/3M(WHT)-SCI is a white marine-approved sensor mounting base with an integral short-circuit isolator (SCI), for Hochiki ESP analogue addressable sensors such as the ALN-ENM, ACC-ENM and ATJ-ENM marine sensors. It detects and isolates short-circuits on the loop. Hochiki's datasheet lists this base as YBN-R/3(SCI)M, available in ivory or white.
If a short-circuit is detected at power-up, the base drops power to the rest of the loop. It does not need a loop address and gives a remote fire LED facility when a sensor is fitted. A fitted sensor stays powered while the base is isolating. Hochiki's marine range is based on its ESP and CDX ranges and is approved for marine use by DNV under the EU Marine Equipment Directive (MED), for ships, oil platforms, offshore installations and wind farms.
Key features
- Integral short-circuit isolator
- Easy to fit
- Slim profile
- Matches standard base colours
- No loop address required
- Remote fire LED facility
Technical specifications
- Ordering code: YBN-R/3M(WHT)-SCI (white)
- Colour: white
- Protocol: Hochiki ESP (no loop address needed)
- Operating voltage: 17 to 41 VDC (24 VDC nominal)
- Standby current: 60 µA
- Isolator current during fault: < 4 mA
- Remote LED current: 10 mA max (limited by attached sensor)
- Maximum continuous current: 1 A
- Maximum quantity per loop: 127 (check panel manufacturer)
- Ambient temperature: -10 °C to +50 °C
- Relative humidity: 10% to 95% RH (at 40 °C)
- Case material: ABS
- Fixing centres: 48 to 74 mm
- Maximum wire size: 2.5 mm² per terminal
- Weight: 79 g
- Dimensions: Ø 100 x H 13.7 mm
- Approvals: DNV rules for classification (ships); IMO FSS Code chapter 9; location classes temperature B, humidity A, vibration A, EMC B
