Hochiki espFIREbeam Xtra Beam Smoke Sensor (includes controller and reflector)

The Hochiki ESP FIREbeam Xtra is an addressable reflective beam smoke detector, approved to EN 54-12:2015, for large open spaces such as warehouses, sports halls, shopping centres, museums and cathedrals. It has an integral loop module for full connection to the Hochiki ESP analogue addressable loop.

The standard unit covers 7 to 70 m and can be extended to 140 m or 160 m with range extension kits. A separate controller lets engineers commission, monitor and maintain the beam from ground level. Motorised technology self-aligns the head to the centre of the reflector during commissioning, then keeps checking alignment and realigns if the building moves.

Key features

• 7 to 70 m standard detection range; extension kits increase this up to 160 m
• Motorised self-alignment, with continual correction for building movement
• New optics design increases sensitivity; enhanced software reduces false alarms
• Integral loop module, fully compatible with the Hochiki ESP protocol
• Ground-level controller for commissioning, monitoring and maintenance
• Approved by VdS to EN 54-12:2015

Technical specifications

• Supply voltage: 17 to 41 VDC
• Supply current: 3.5 mA constant in all operational states; 17 mA in fast commissioning
• Operating temperature: -10 °C to +55 °C
• Operating humidity: 10 to 95% RH, non-condensing
• Ingress protection: IP65 (when suitably mounted and terminated)
• Optical wavelength: 870 nm
• Maximum angular alignment: ±5°
• Maximum angular misalignment: beam head ±0.4°, reflector ±2°
• Alarm sensitivity: 25% (1.25 dB) to 50% (3 dB) in 1% steps, default 35% (1.87 dB)
• Beam head: 1.1 kg, H 180 x W 155 x D 137 mm
• Controller: 0.55 kg, H 185 x W 120 x D 62 mm
• Range extension kits: 70KIT140 (70 to 140 m), 140KIT160 (140 to 160 m)

What's in the box

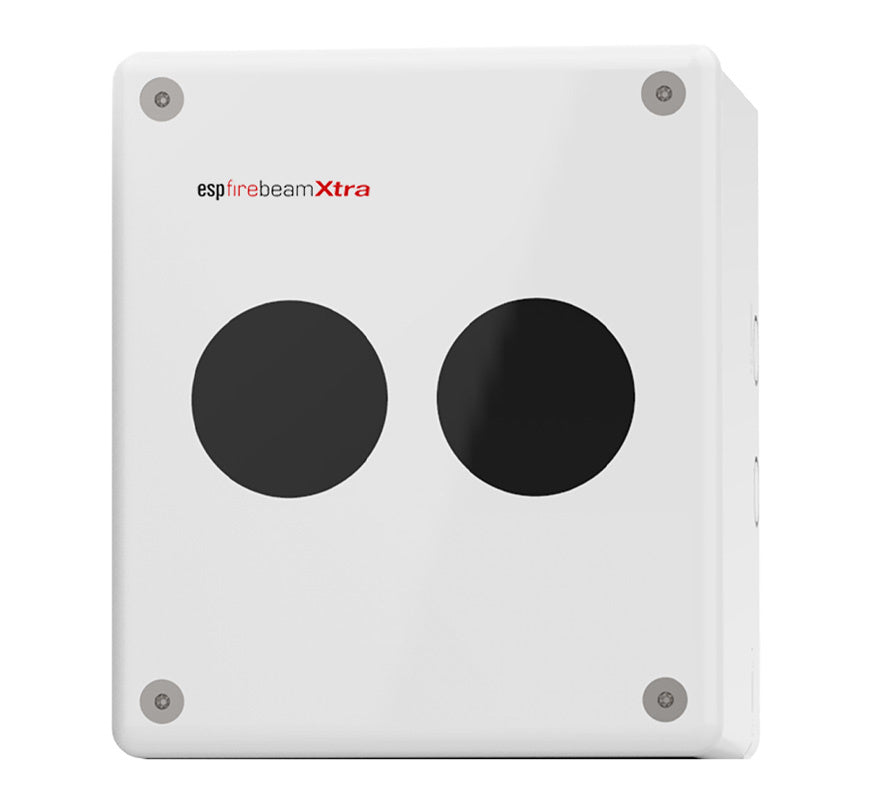

• ESP FIREbeam Xtra beam head
• Controller
• 1 x reflector (7 to 70 m)
