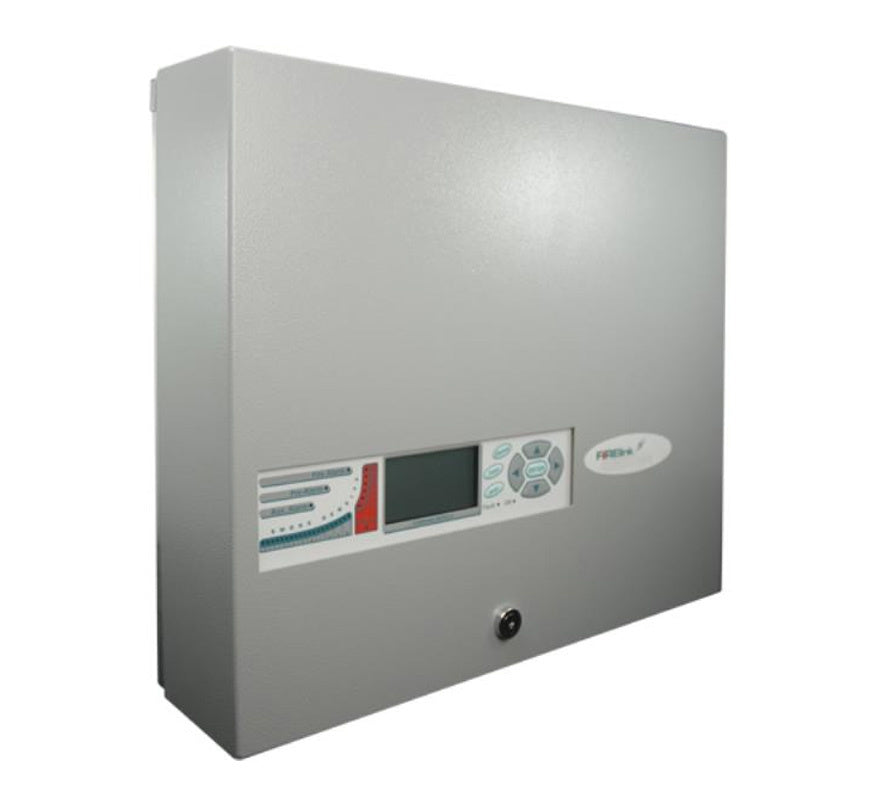

Hochiki FIRElink 4 Pipe Aspirating Smoke Detector with Command Module (FIRELINK-400CM)

The Hochiki FIRElink-400CM is the four-pipe FIRElink-400 aspirating smoke detector with an integrated Command Module. It gives very high sensitivity smoke detection with built-in immunity to dust and dirt build-up, for large areas such as warehouses and factories.

The Command Module provides a single place to display, control and interface a network of up to 127 FIRElink detectors, and allows global programming of all detector functions at once. All FIRElink detectors are LPCB approved to EN54-20:2006 Classes A, B and C.

Key features

• Integrated Command Module controls, programs and tests other FIRElink units on the same network
• Four sampling pipes, up to 200 m aggregate (still air)
• Laser-based forward light scatter for reliable early warning
• Unique dust discrimination to reduce false alarms
• RS485 communications for networking and remote communications

Technical specifications

• Ordering code: FIRELINK-400CM (standard detector with Command Module)
• Current consumption: 920 mA at 24 VDC (fan speed 8)
• Network size: up to 127 detectors
• Sampling pipe inlets: 4 on top, 4 on rear
• Exhaust outlets: 1 on top, 1 at rear
• Maximum single pipe length: 100 m (2 x 50 m) still air
• Total sampling pipe: 200 m maximum at 100 sampling holes
• Alarm levels: 4 (Aux, Pre-Alarm, Fire 1, Fire 2)
• Operating temperature: 0 °C to +38 °C (UL268) / -10 °C to +60 °C (CEA4022)
• Operating humidity: 0 to 90%, non-condensing
• Measurement range: 0.03% to 25% obs/m full scale deflection; sensitivity resolution 0.0015% to 25%
• Detection principle: laser light scattering mass detection and particle evaluation
• Particle sensitivity range: 0.003 µ to 10 µ
• Dust discrimination: 3D3 Laser Dust Discrimination (LDD)
• Sampling pipe diameter: ¾" nominal bore (27 mm O/D)
• Relay contact rating: 500 mA at 30 V
• Supply voltage: 21.6 to 26.4 VDC
• IP rating: IP50
• Weight: 5.3 kg
• Dimensions: H 372 x W 427 x D 95 mm
