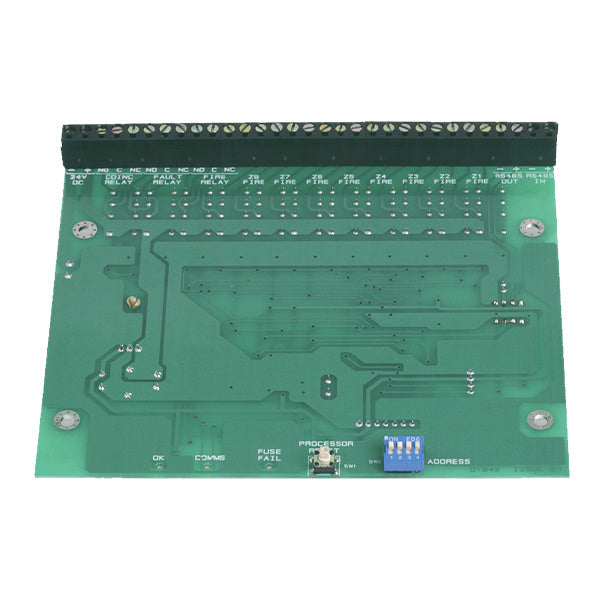

Kentec Sigma CP Ancillary PCB (K580)

The Kentec K580 is a stand-alone ancillary PCB for Kentec Sigma CP conventional fire alarm control panels, and can also be added to the RS485 serial bus of Sigma XT+ panels. It provides zonal outputs plus volt-free fire, coincidence and common fault contacts for interfacing with other building systems.

The board connects to the control panel over a two-wire serial data link. Up to seven ancillary boards can be connected to a panel, each given an address from 1 to 7 on a binary-coded DIL switch. The total data cable length from the panel to the last device must not exceed 1200 metres.

Key features

• Two-wire RS485 serial connection to the control panel
• Up to 7 boards per system, addressed by DIL switch
• Zonal outputs for zones 1 to 8
• Volt-free fire, coincidence and common fault contacts
• Processor reset switch and comms status indication

Technical specifications

• Product code: K580 (stand-alone board, 24 V DC powered)
• Standby current: 20 mA; full alarm current: 190 mA
• Fire, fault, coincidence and zonal contact ratings: 30 V DC, 1 A
• Max. data cable length: 1200 m
• Cable capacity: 2.5 mm² per terminal
• Operating temperature: -5°C to +50°C; humidity <95% non-condensing
