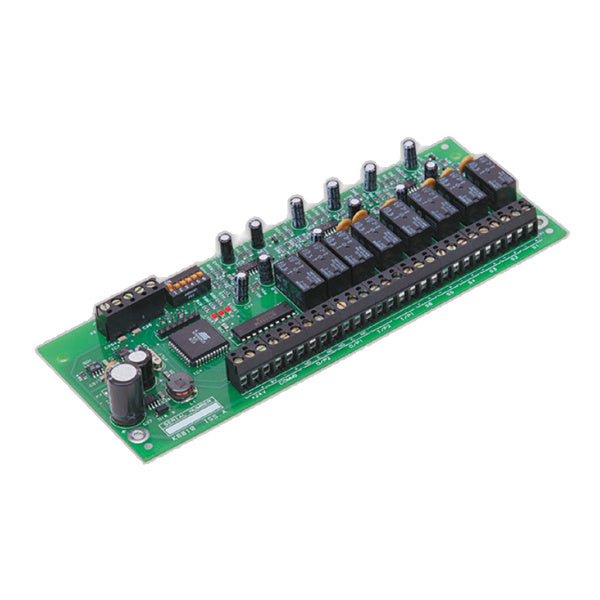

Kentec Syncro 6 Way Sounder Extender Board (K546)

The Kentec K546 is a 6-way sounder extender board for Kentec Syncro AS and Taktis addressable fire alarm control panels. It adds six individually programmable, monitored sounder outputs, plus two opto-isolated general purpose inputs and two volt-free changeover outputs.

Up to 32 boards can be connected to the panel's dedicated RS485 bus, giving up to 192 extra sounder outputs with 64 inputs and 64 outputs. The boards can be mixed on the bus with 16-channel I/O, 8-way relay and 4-way conventional zone boards. They are typically used where more than the four standard sounder outputs are needed, such as when replacing an existing conventional system. Standard Syncro panels have fixings for one expansion board inside the cabinet.

Key features

• 6 individually fused and monitored sounder outputs
• Fault and operated indications
• 2 opto-isolated general purpose inputs
• 2 volt-free changeover general purpose outputs
• Connects to the panel over the RS485 serial bus
• All inputs and outputs programmable for cause and effect
• Common footprint with other Syncro I/O board types

Technical specifications

• Product code: K546
• Supply voltage: 21 to 30 V DC
• Quiescent current: 30 mA; full alarm current: 260 mA
• Sounder outputs: 1 A max. each (polarised sounders); 10K end-of-line monitoring resistor
• Input current: 3 mA max.; output contact rating: 30 V DC, 1 A
• Communications: two-wire RS485, up to 1.2 km from the panel
• PCB size: 190 x 74 mm; fixing centres 51.5 x 180 mm
• Cable capacity: 2.5 mm² per terminal
• Operating temperature: -5°C to +50°C; humidity to 95% non-condensing
• Weight: 1 kg
