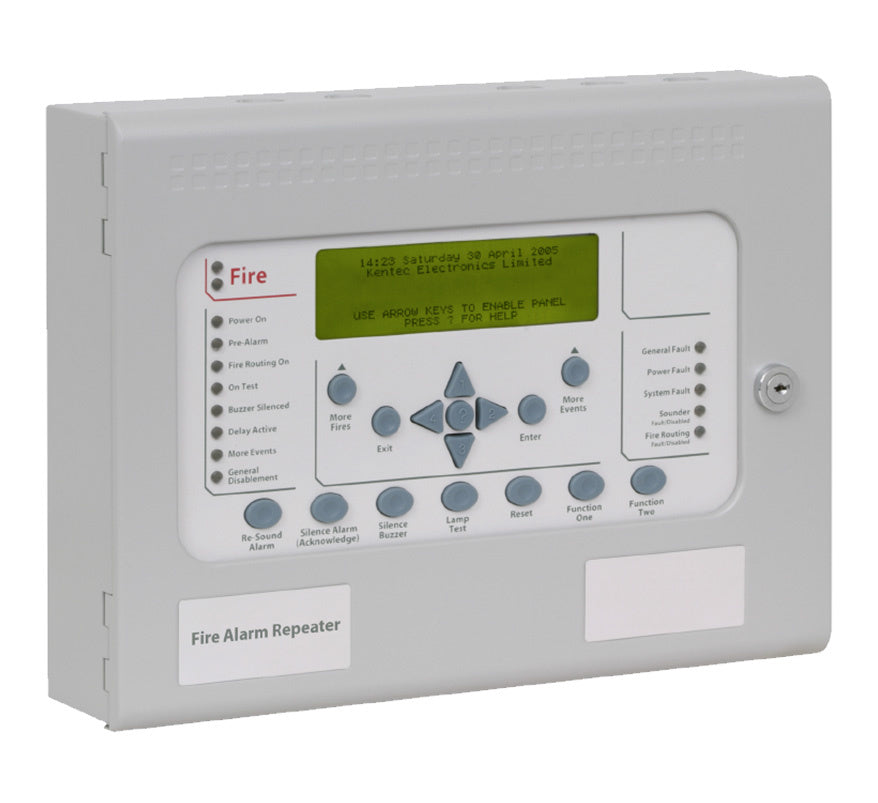

Kentec Syncro View Marine Approved Local LCD Repeater Panel 24v (MK67000M1)

The Kentec Syncro View Marine MK67000M1 is a 24 V DC local LCD repeater (annunciator) panel for marine and offshore installations. It extends the controls and indications of the Kentec Syncro ASM fire alarm control panel to other locations.

Up to 15 annunciators can be connected to each Syncro ASM panel on a two-wire serial data link. When powered from 2 extra cores of the Syncro ASM panel, up to 4 View Marine repeaters can be connected. With a local ancillary 24 V DC supply, the full 15 can be used. The compact enclosure suits spaces where room is limited, such as the bridge or helm, engine rooms and crew quarters.

Key features

• Large graphic LCD (240 x 64 pixels)
• High-brightness LED indications and internal sounder
• Replicates all Syncro ASM panel controls
• Simple two-wire serial connection
• Small Syncro-style enclosure with removable electronics

Technical specifications

• Product code: MK67000M1 (24 V DC model)
• Supply: 21 to 30 V DC
• Display: 8 lines of 40 characters graphic LCD
• Serial data: 2-core RS485, up to 1200 m total cable length
• Construction: 1.2 mm mild sheet steel, epoxy powder coated, IP30
• Dimensions: 330 x 255 x 90 mm
• Cable entry: 5 x 20 mm knockouts in top and 5 in rear
• Terminal capacity: 2.5 mm²
