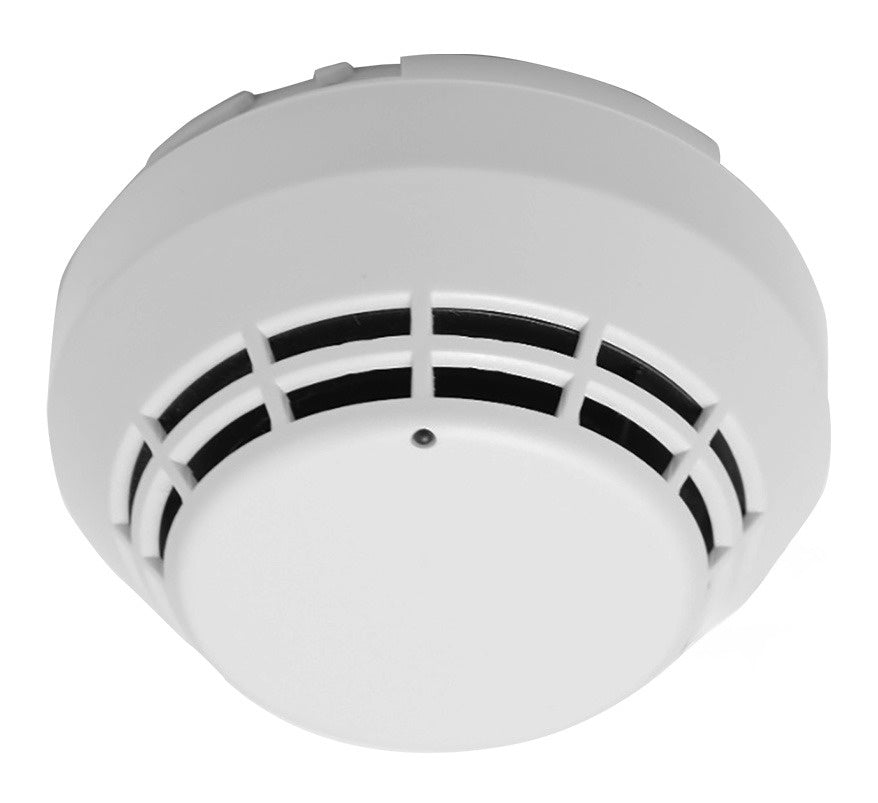

Kidde Intelligent Addressable Dual Optical Smoke Detector (KE-DP3020W)

The Kidde KE-DP3020W is an Excellence series intelligent addressable dual optical smoke detector in traffic white. Dual optical wavelengths and multiple detection angles let it tell real fire particles from nuisance sources such as dust and steam.

Key features

• Dual optical detection with nuisance alarm, steam and dust discrimination
• Regular automatic self-testing with drift compensation and contamination warning
• Tri-colour status LEDs with 360° visibility
• Rotary switch addressing
• Remote indicator output with short-circuit isolation (up to 30 m)
• Event logging in the device
• Can be tested with a Scorpion tester where detectors are hard to reach
• All alarm levels EN 54 certified

Technical specifications

• Compatibility: Kidde Commercial Excellence systems, standard base
• Addressing: rotary switches
• Operating voltage: 17 to 29 V DC
• Current consumption: 140 µA quiescent, 4.75 mA alarm (at 24 V DC)
• Alarm levels: 3 (selectable)
• Particle sensitivity: 0.1 to 0.25 dB/m ±20%
• Coverage: <112 m²
• Installation height: <10.5 m standard / <12 m (reduced spacing and risk assessment)
• Remote output: <8 mA
• Dimensions: 100 mm diameter x 47 mm
• Weight: 124 g
• Colour: white (RAL 9016), PC/ABS
• Operating temperature: -10 to +55°C
• IP rating: IP20
• Standards: EN 54-7
