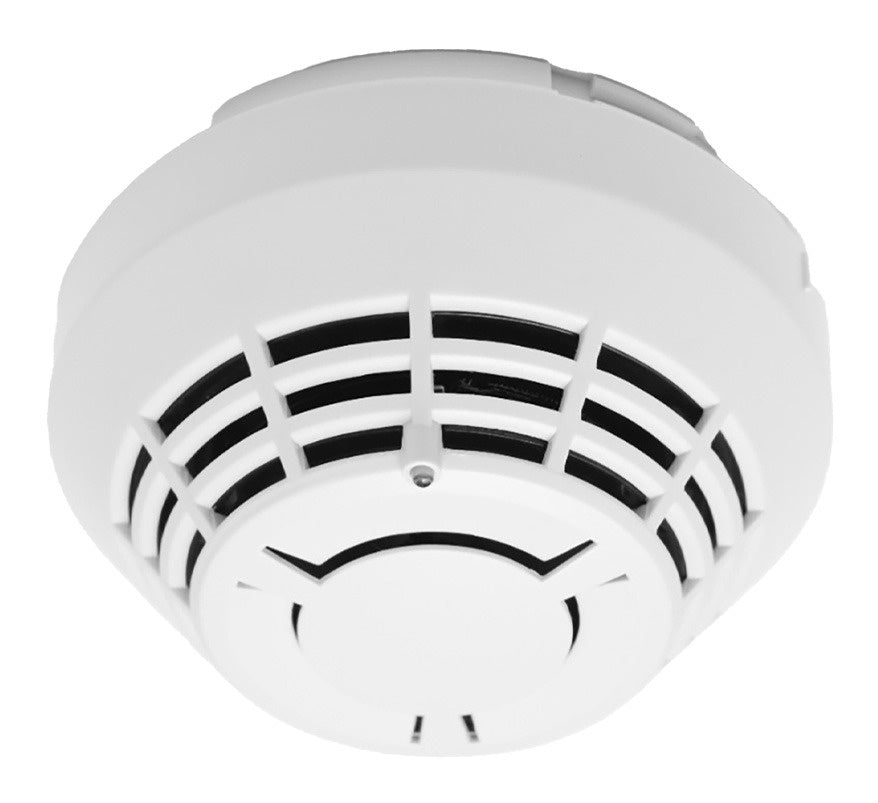

Kidde Intelligent Addressable Heat Detector (KE-DT3001W-HAB)
SKU: KE-DT3001W-HABBrand: Kidde Commercial
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 5 | Same day dispatch |
| UK Hub | 0 | None at UK Hub |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Kidde Intelligent Addressable Heat Detector (KE-DT3001W-HAB)
£23.65
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Static and rate-of-rise heat detection
- Regular automatic self-testing, with issues reported to the panel
- Tri-colour status LEDs with 360° visibility
- Rotary switch addressing
- Remote indicator output with short-circuit isolation (up to 30 m)
- Event logging in the device
Frequently bought together
Kidde Commercial
Kidde Intelligent Addressable Heat Detector with Isolator (KE-DT3101W-HAB)
Sale price£29.40
In stock
Kidde Commercial
Kidde Intelligent Addressable Manual Call Point (Green) (KE-DM3010G)
Sale price£33.65
In stock
Kidde Commercial
Kidde Intelligent Addressable Manual Call Point (Yellow) (KE-DM3010YS99)
Sale price£34.50
In stock
Kidde Commercial
Kidde Intelligent Addressable Weatherproof Manual Call Point (Red) (KE-DM3010R-IP)
Sale price£111.75
In stock
Kidde Commercial
Kidde KE-DBA-RECW Intelligent Addressable Base Accessory Recess Base (White)
Sale price£5.90
In stockProduct details
The Kidde KE-DT3001W-HAB is an Excellence series intelligent addressable heat detector in traffic white. It supports EN 54 class A with static and rate-of-rise response, and class B with rate-of-rise response.
Key features
- Static and rate-of-rise heat detection
- Regular automatic self-testing, with issues reported to the panel
- Tri-colour status LEDs with 360° visibility
- Rotary switch addressing
- Remote indicator output with short-circuit isolation (up to 30 m)
- Event logging in the device
- All alarm levels EN 54 certified
Technical specifications
- Compatibility: Kidde Commercial Excellence systems, standard base
- Addressing: rotary switches
- Operating voltage: 17 to 29 V DC
- Current consumption: 140 µA quiescent, 4.75 mA alarm (at 24 V DC)
- Alarm levels: 3 (selectable)
- Heat: alarm 54 to 70°C, rate-of-rise supported
- Coverage: <57 m²
- Installation height: <7.5 m standard / <9 m (reduced spacing and risk assessment)
- Remote output: <8 mA
- Dimensions: 100 mm diameter x 54 mm
- Weight: 110 g
- Colour: white (RAL 9016), PC/ABS
- Operating temperature: -10 to +65°C
- IP rating: IP20
- Standards: EN 54-5
